Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 314

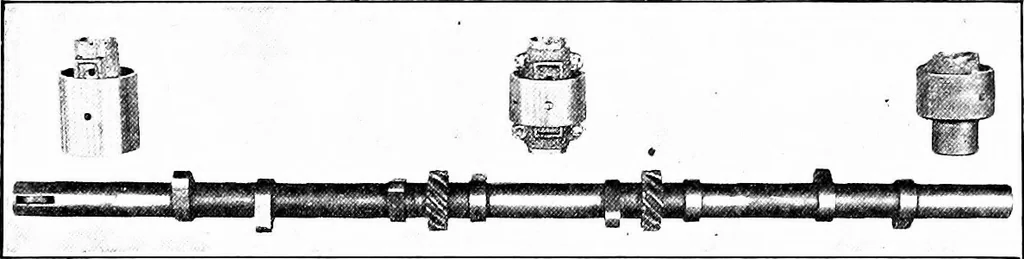

shaftdesign, which is properly a part of the valve system andwhich has been considered in connection with the otherelements which have to do directly with cylinder construc-tion to some extent. Cam-shafts are usually simple mem-bers carried at the base of the cylinder in the enginecase of Vee type… … Fig. 133.—Typical Cam-Shaft, with Valve Lifting Cams and Gears toOperate Auxiliary Devices Forged Integrally. that in which the cams are separate members, keyed andpinned to the shaft, and the other where the cams areformed integral, the latter being the most suitable forairplane engine…
