Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 343

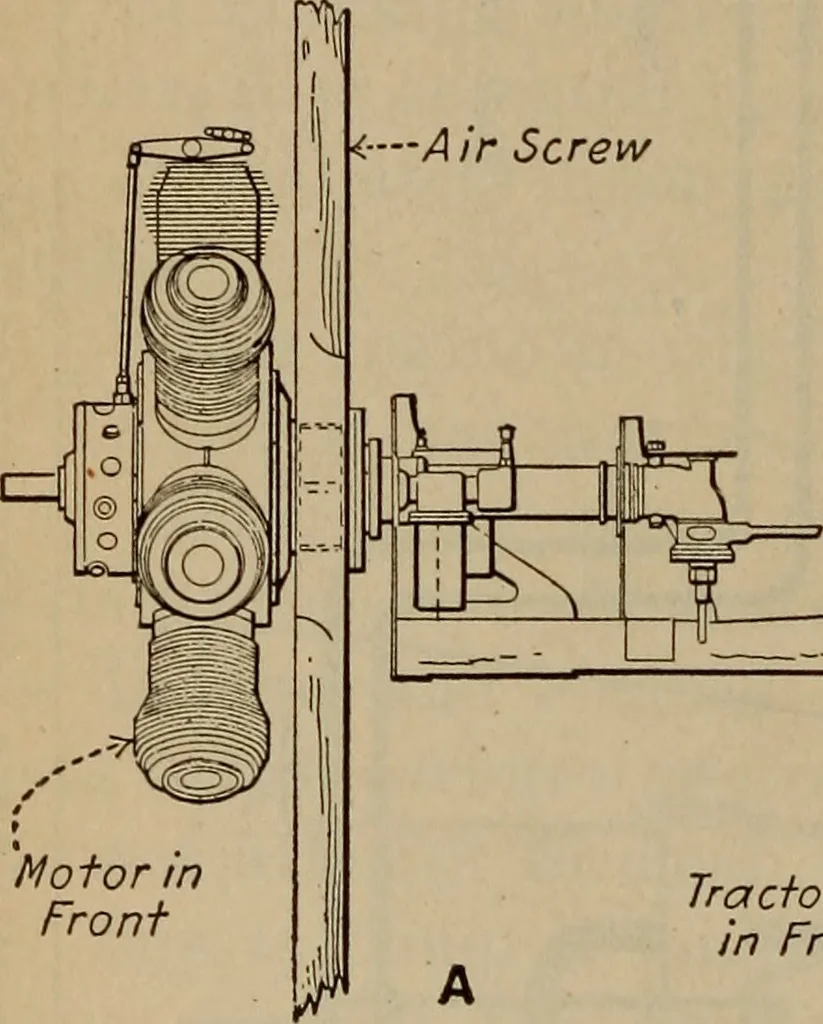

5 ^ ^ 313 344 Aviation Engines the front spider plate to install the auxiliary parts suchas the oil pump, air pump and ignition magneto and alsothe fuel and oil containers. The diagram given at Fig.156 shows how a Gnome monosoupape engine is in-stalled on the anchorage plates and it also outlines… … Motor inFront Tractor Screw--*in Front
Airplanes
