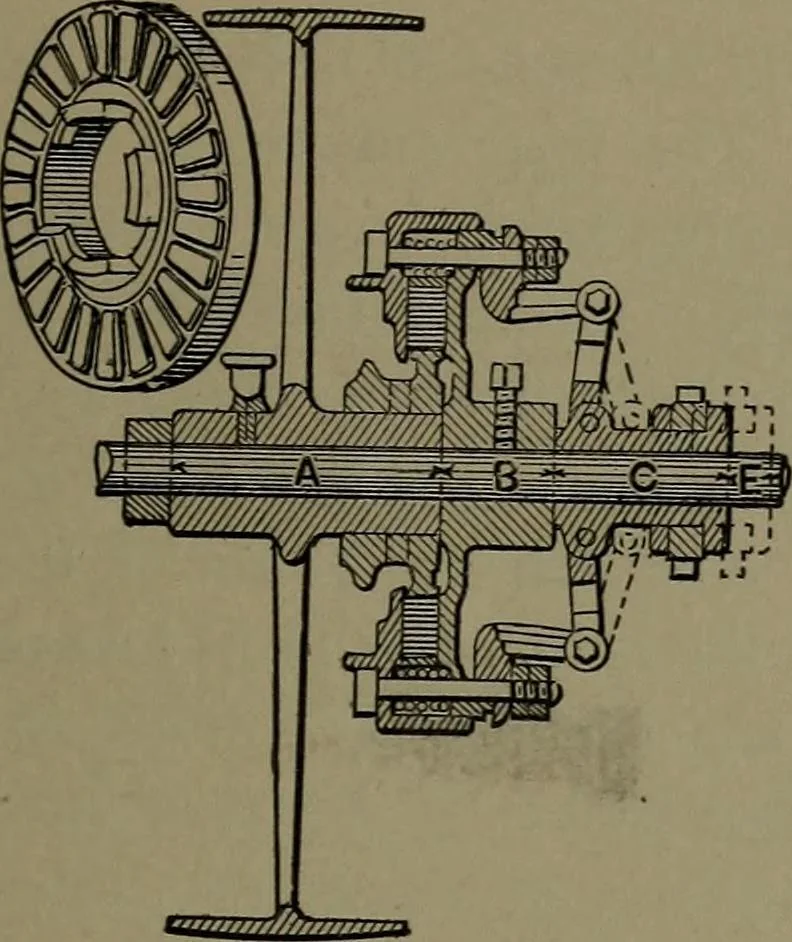

25. PANEL CLUTCHES.Simpson type. A silent clutchthat prevents back movementand takes up a forward motionwithout the jerk of a ratchet andpawl. Useful on agricultural im-plements, sewing-machines, etc. 26. The under figure repre-sents a triangular quick-actionpanel apphed on the same prin-ciple as… … 27. FRICTION PULLEY. Uponthe hub of the pulley is keyed a collarwith lugs on one side which engage withlugs on the friction disk; this causes thedisk that fits loosely on the hub of thepulley to revolve with the pulley, and atthe same time leaves the disk free to vi-brate sideways if necessary. The…
