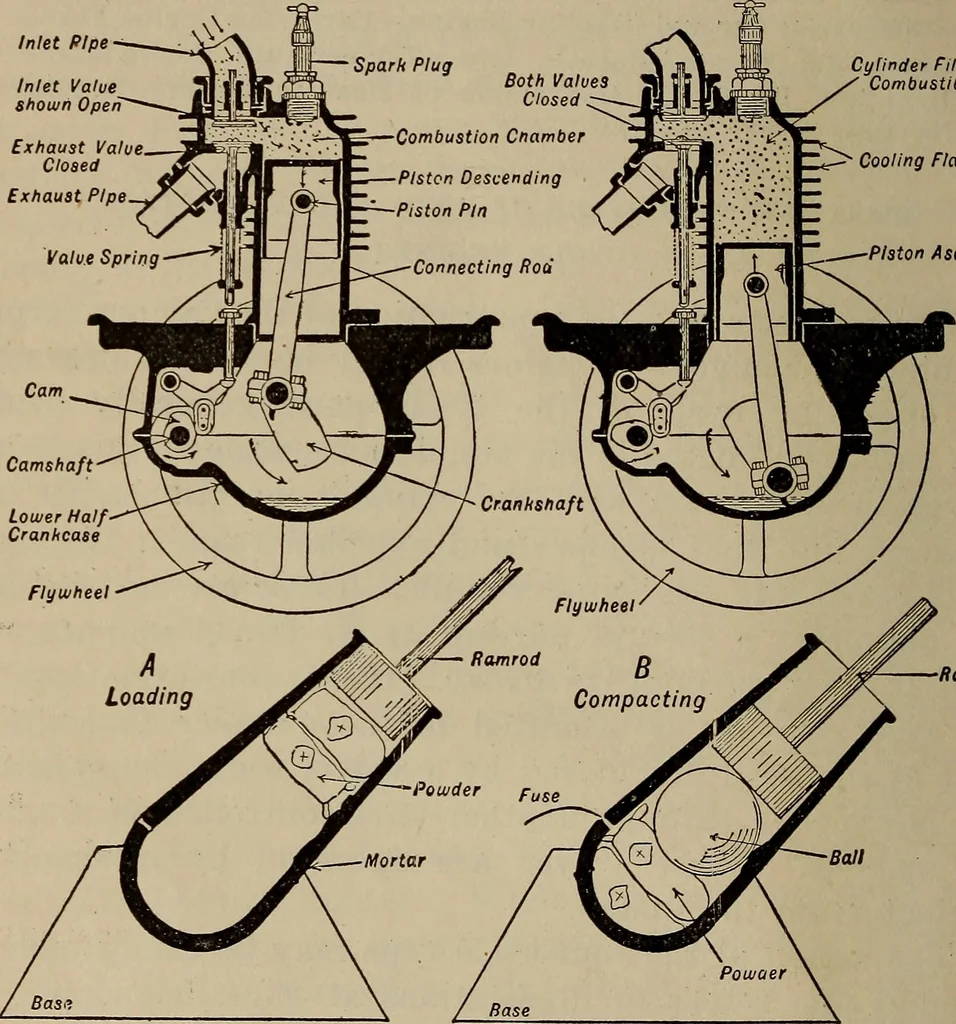

vable element of the gas-engine is driven 37 38 Aviation Engines from the closed or head end to the crank end of thecylinder by a similar expansion of gases resulting fromcombustion. The first operation in firing a gnn or secur-ing an explosion in the cylinder of the gas-engine is to Inlet Pipe 1.… … 1. Powder Inserted. 2. Powder Compressed. Fig. 5.—Outlining First Two Strokes of Piston in Four-Cycle Engine. fill the combustion space with combustible material. Thisis done by a down stroke of the piston during which timethe inlet valve opens to admit the gaseous charge to thecylinder interior.…
