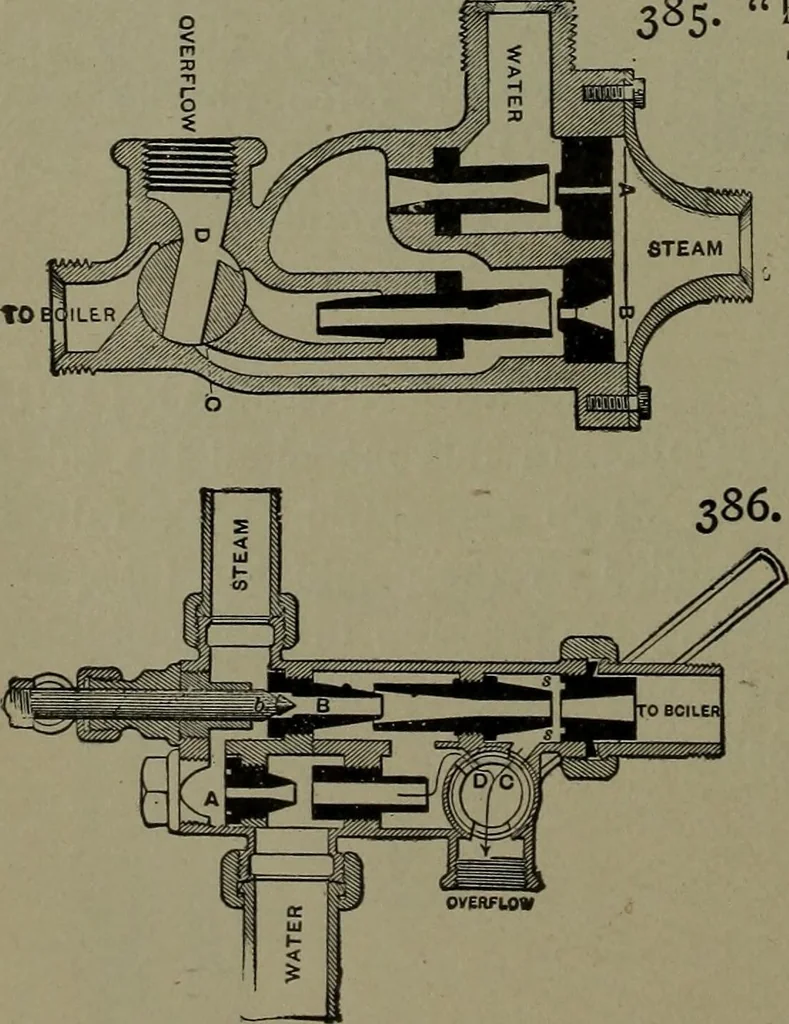

386. LEADER INJECTOR.—A double-tube injector. Aseparate valve gives steamto the lifting nozzle A, withthe overflow cock open. Thefirst movement of the handleopens the force valve b ; afurther movement closes theoverflow to both lift and forcetubes. STEAM APPLIANCES. 107
