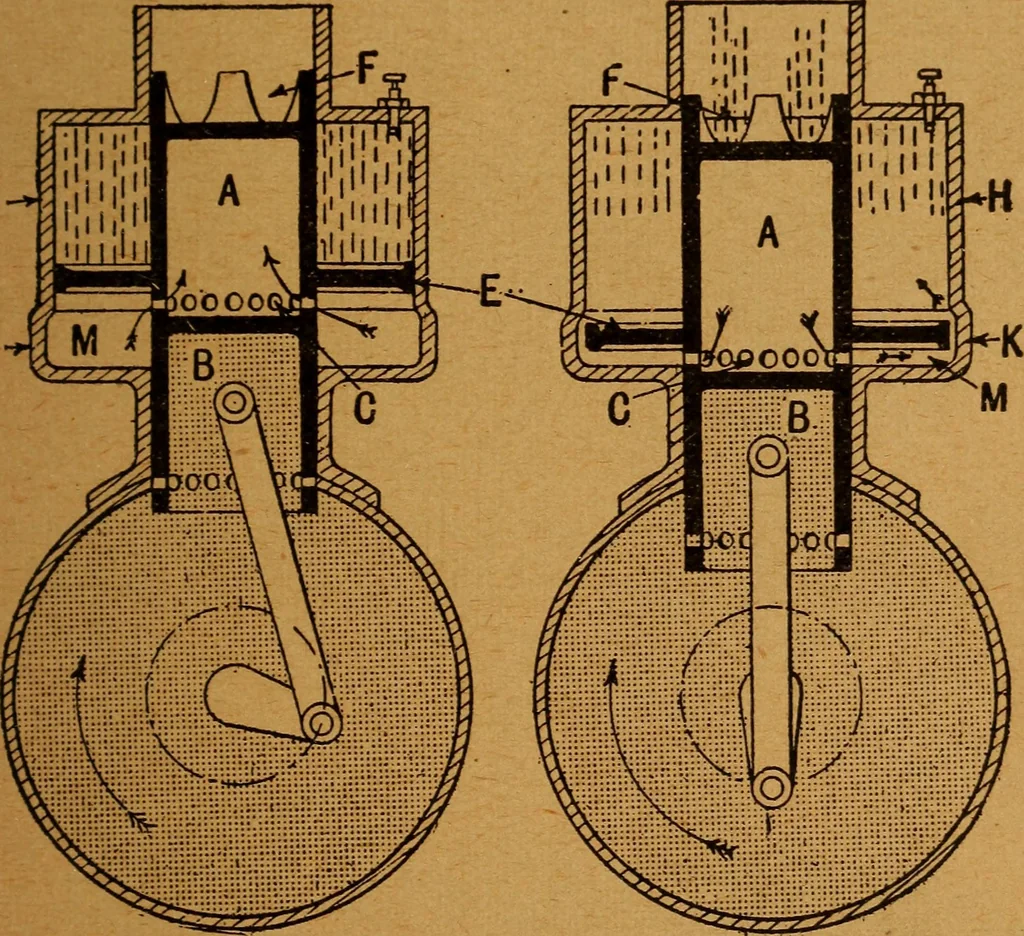

xhaust takes place. The volume of the chamberM has now been decreased with the result that the mixture willhave been compressed into the chamber A. In Fig. 4, the piston has now reached the bottom of thestroke, and the ports F have opened as the slots carry belowthe upper end of the cylinder where… … Gnome Rotary, Diagrams 3 and 4. around E into the combustion chamber and drives out theresidual burned gases which still remain after the explosion.On starting the second revolution the piston rises and thecycle repeats as shown by Fig. 1. This engine may be built with any number of the…
