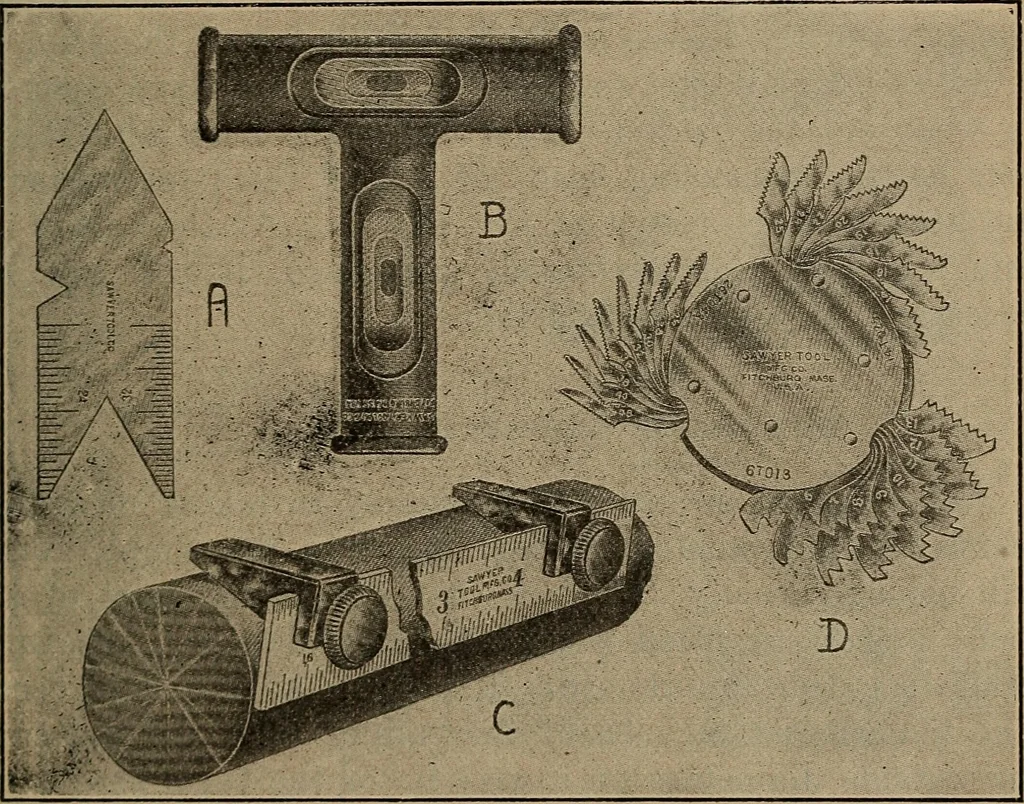

r measuring tools of value tothe machinist is shown at Fig. 177. The small scale at Ais termed a center gauge, because it can be used to test Measuring Tools 403 the truth of the taper of either a male or female lathecenter. The two smaller nicks, or vs, indicate the shapeof a standard thread, and… … Fig. 177.—Measuring Appliances of Value in Airplane Repair Work. is level. It will indicate if the piece is level along itswidth as well as its length. A very simple attachment for use with a scale thatenables the machinist to scribe lines along the length ofa cylindrical piece is shown at Fig.…
