Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 404

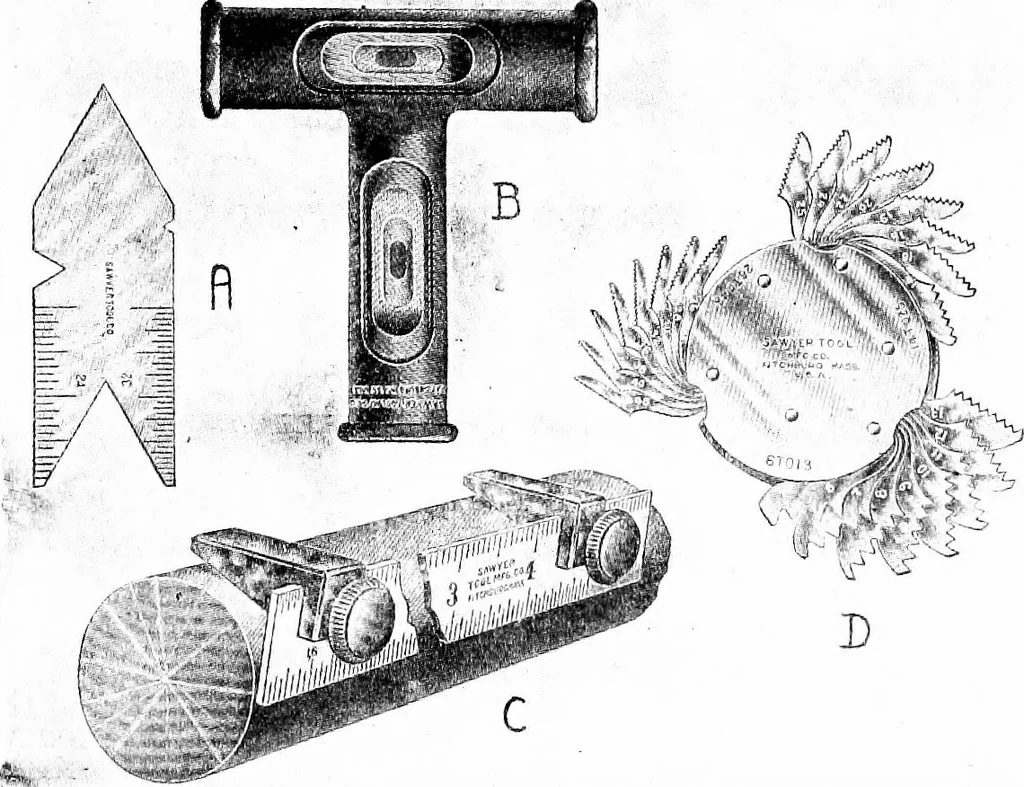

g tools of value tothe machinist is shown at Fig. 177. The small scale at Ais termed a center gauge, because it can be used to test Measuring Tools 403 the truth of the taper of either a male or female lathecenter. The two smaller nicks, or vs, indicate the shapeof a standard thread, and may be… … Fig. 177.—Measuring Appliances of Value in Airplane Repair Work. is level. It will indicate if the piece is level along itswidth as well as its length. A very simple attachment for use with a scale thatenables the machinist to scribe lines along the length ofa cylindrical piece is shown at Fig.…
Airplanes
