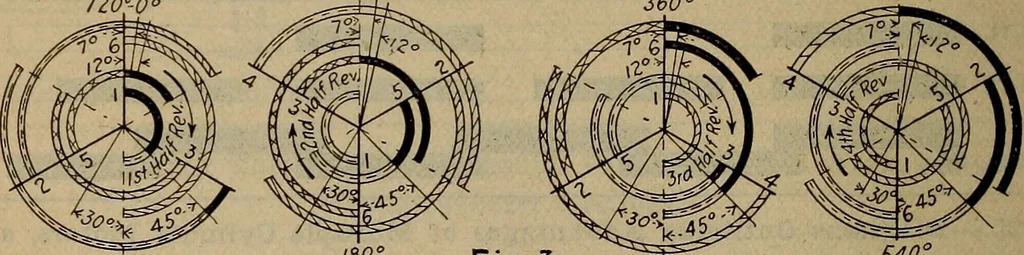

Note.-Read Figs. 3&4from Centers outward Is+S+r 2nd S+r 3rd 5+r 4th St 1st Revolution ONE CYCLE720<-0° 2nd Revolution … 180° Fig.3 540 ° Fig. 26.—Diagrams Showing Duration of Events for a Four-Stroke Cycle, Six-Cylinder Engine. cylinders are used there is no lapse of time between powerimpulses, as these overlap and a continuous and smooth-turning movement is imparted to the crank shaft. Thediagram shown at Fig. 26,…
