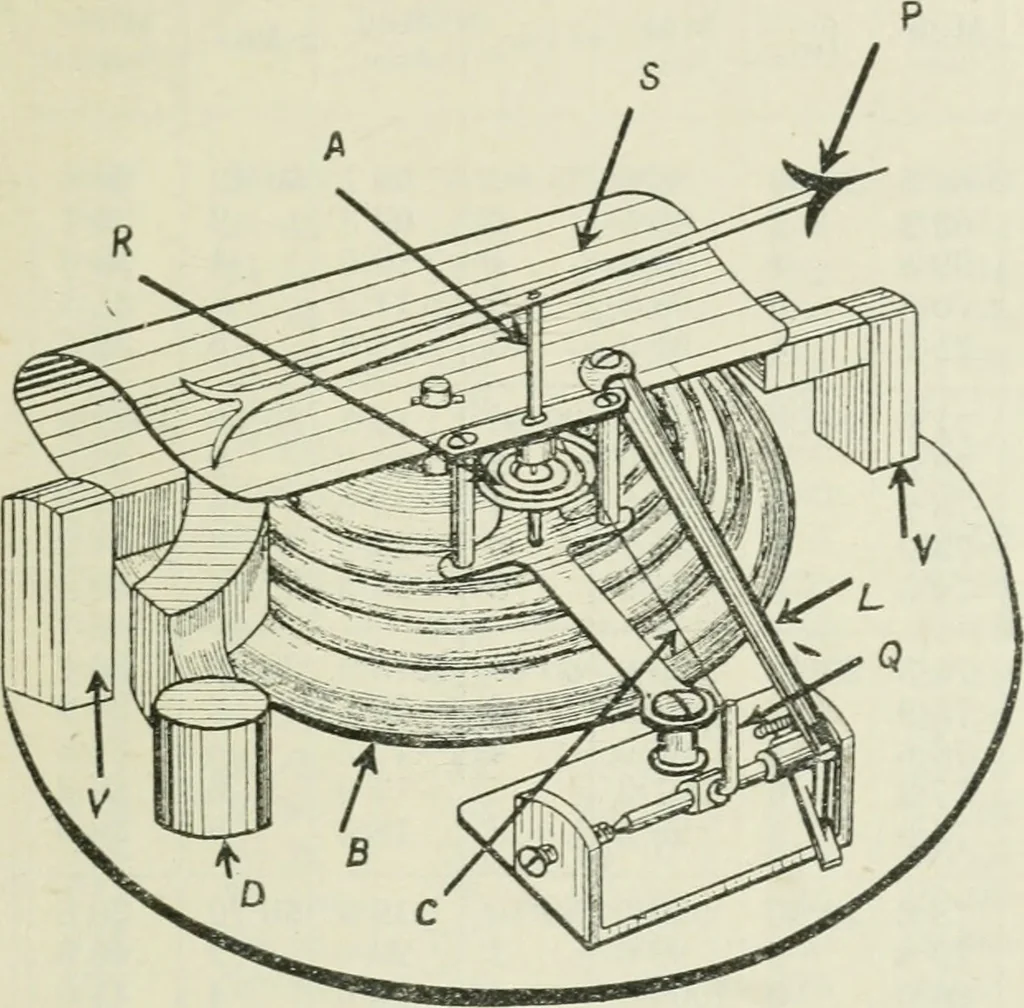

ng R ;when the pressure decreases, the relaxation of the spring s acting DIV. ix] THE ANEROID RAROMETER 231 through the levers slackens the chain c, which is made taut againby the unw inding of the coil spring r. The adjusting pillar D isfastened to the spring s, and is moved by a screw passing… … A Arbor S Plate Spring P Pointer Q Bent Lever c Chain L Lever B Corrugated Box R Coil Spring V Pillar supporting Plate Spring 0 Adjusting Pillar these instruments at 50 F. (10 C.), a correction has to be appliedfor other temperatures, in accordance with the f(jrmula :— H 283 Where H = true…
