Bench work in wood; a course of study and practice designed for the use of schools and colleges (1905)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, New York, Ginn & company · leaf 126

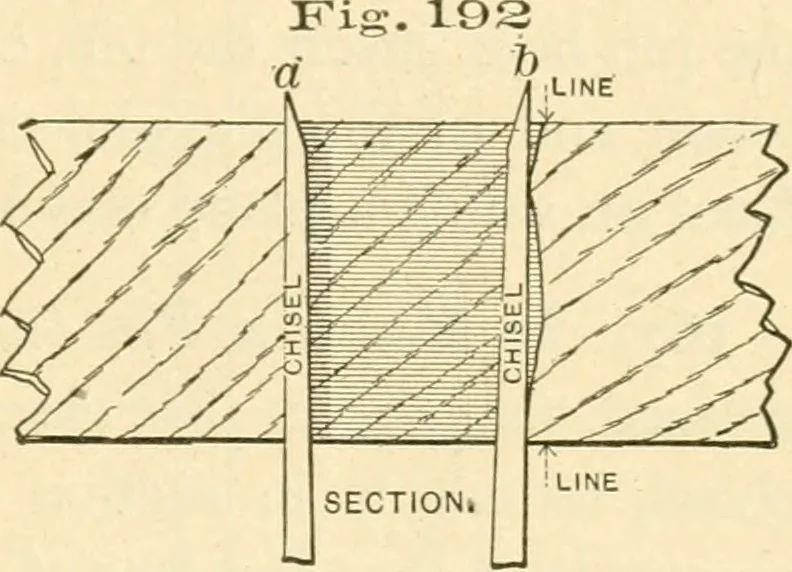

driven through by use of a wooden plug. Never tryto drive them through by using the chisel with its cutting edgeparallel to the grain, as such useis very likely to split the work.The chips having been re-moved, the truth of the mortisemay be tested by using the flatside of the chisel as a… … 166. The Tenon may next be cut by using the back-saw,both across the grain and with it. The sawing, if to line, leavesnothing to be done except the pointing of the tenon; this isaccomplished by a stroke ofthe chisel on each side, whichmakes it appear as shown by Fig. 193 Fig. 193. The pointing…
Woodwork (Manual training)
