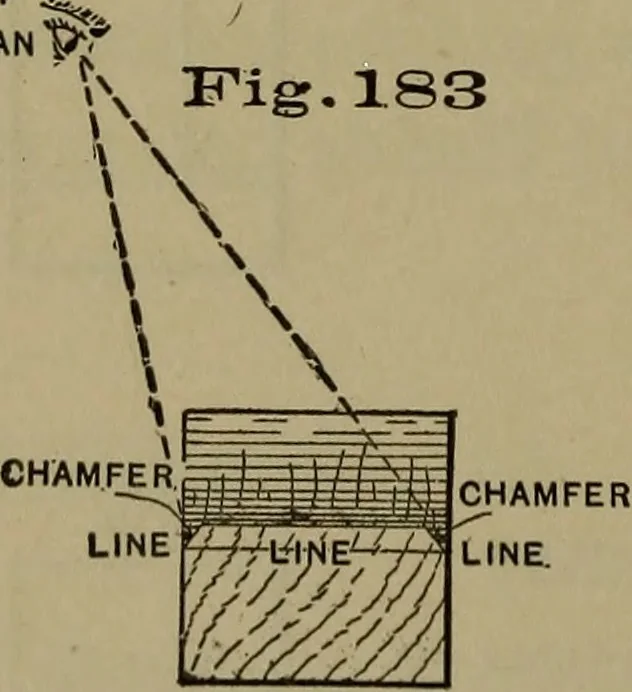

pieces, first run the rip-saw down the linesgf and ij, next, with the back-saw, cut the Hues bf and IJ) next the hues c and e, being care-ful in all of these cuts to keep theproper side of the line (148). Finally,cut on the line a, and try the piecestogether as in Fig. 182. If the workhas been well… … END ELEVATION. BENCH WORK. lOI c Big .184- ^ -4\- -- —~ — ^ ^-Z -■^4^~ tate the operation, make chamfers on each side from theline to the sawed surface, as shown by Fig. 183, to be usedinstead of the Hne. Such chamfers present a twofold advan-tage I they are both visible from the same point, and…
