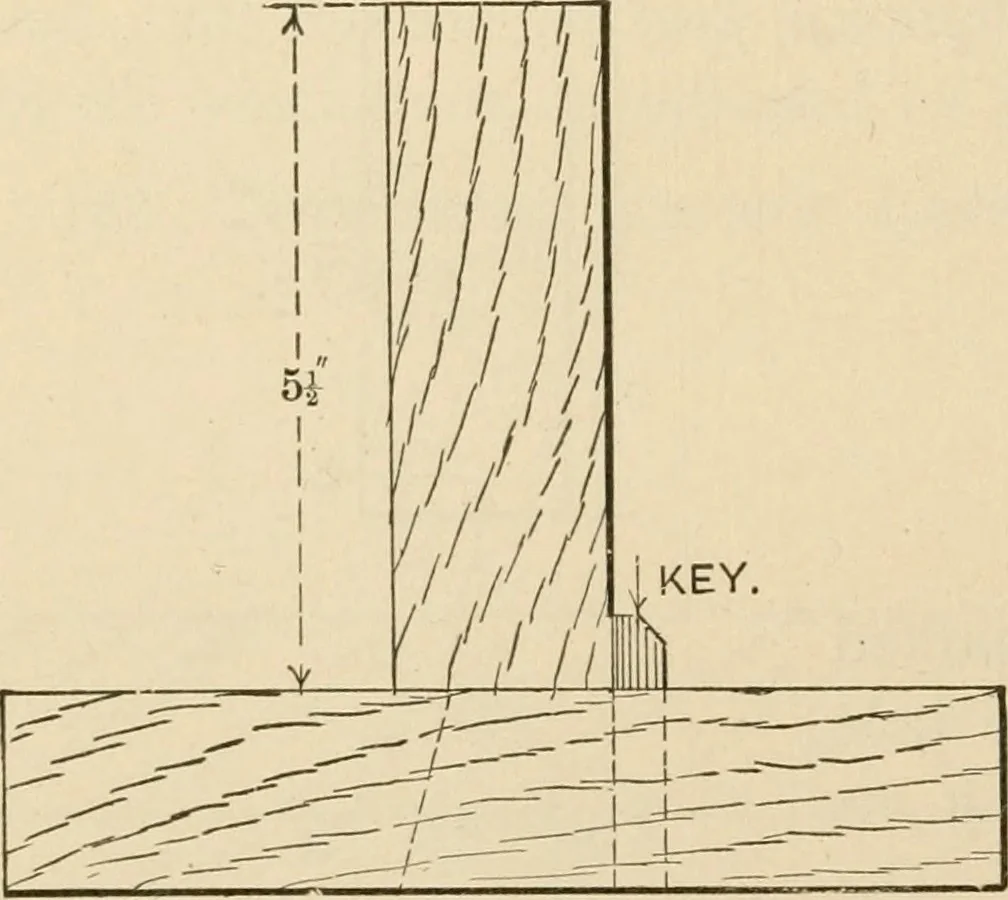

, from Exercise No. 4 ; it is shown with the ne-cessary lining by Fig.196. The finished pieceis represented by Fig.197. 169. The lining dif-fers from that of thepreceding exercise inthe following respects:the position of the lineb is changed as indi-cated by the dimensionfigures, and the positionof… … BENCH WORK. Ill As regards the tenon, the line g is added at a distance fromd equal to the thickness of the piece on the line b, face A;the point h is located on face A, and on the opposite face C,and the line gh drawn on both faces. The mortise r is to becut as in the preceding exercise, and one…
