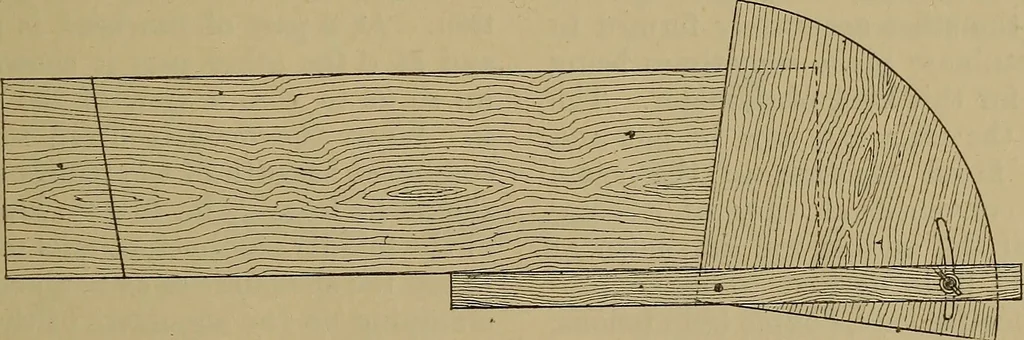

Fig. 1177.—Application of Adjustable Squarefor Setting Out Shoulders on Stiles. o. Thus point f is obtained, and joiningF to b gives the shoulder line. On the in-side of the stile (Fig. 1176) square acrossfrom the line L, and where this intersects … Fig. 1178.—Application of Adjustable Square for Setting Out Shoulders on Middle Rail. setting out for the top rail is shown at Fig.1174, the difference between the front andback shoulders being equal to the thicknessof the bead. The shoulder lines can now beset out on the stiles ; Fig. 1175…
