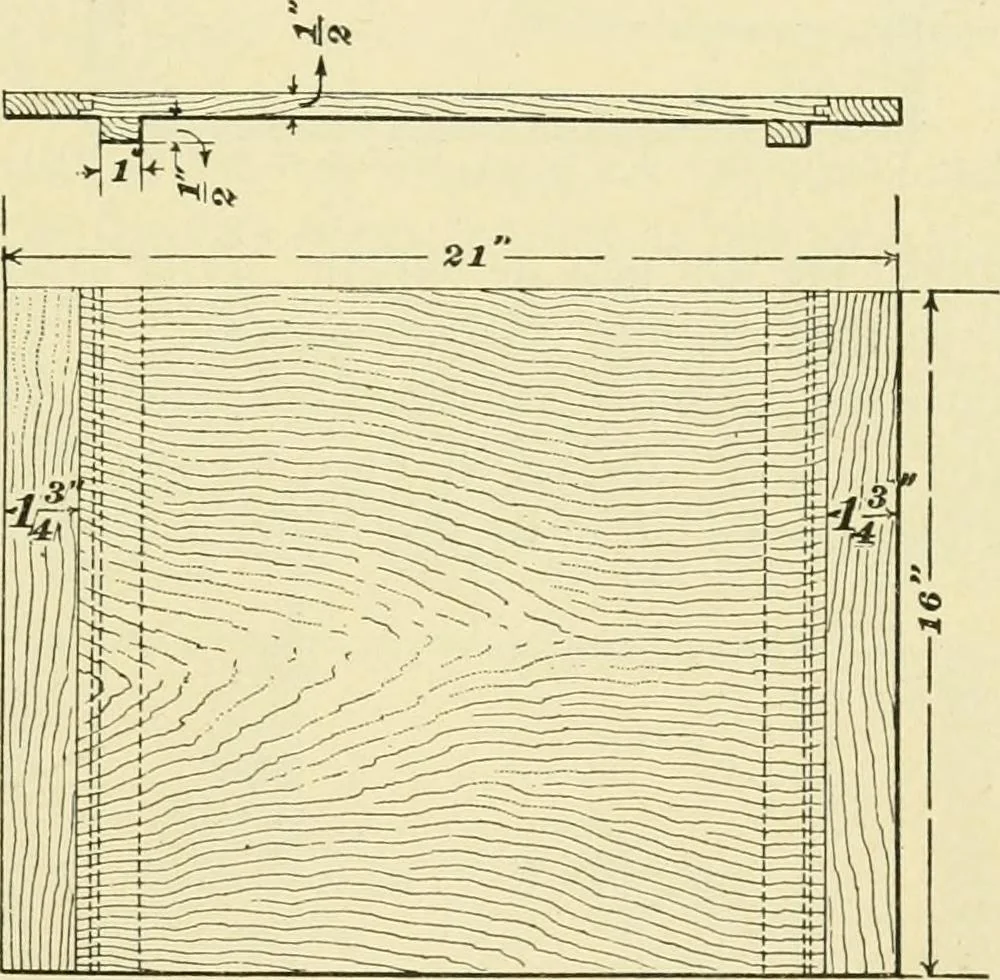

ed in the following descriptions : The dra^ving board should be made of well-seasonedstraight-grained inne, the grain running lengthwise. For thiscourse, the student Avill need a board of about the followingdimensions : length over all, 21 inches ; width, 16 inches ; thethickness may be made about… … Fig. 93. A better board is shown in Fig. 93 ; here the end-pieces arefastened to the board by a glued matched joint in addition tothe nails or screws, and there are two cleats on the bottom1 inch by ^ inch, extending the whole width of the board.The cleats raise the board from the table and make it…
