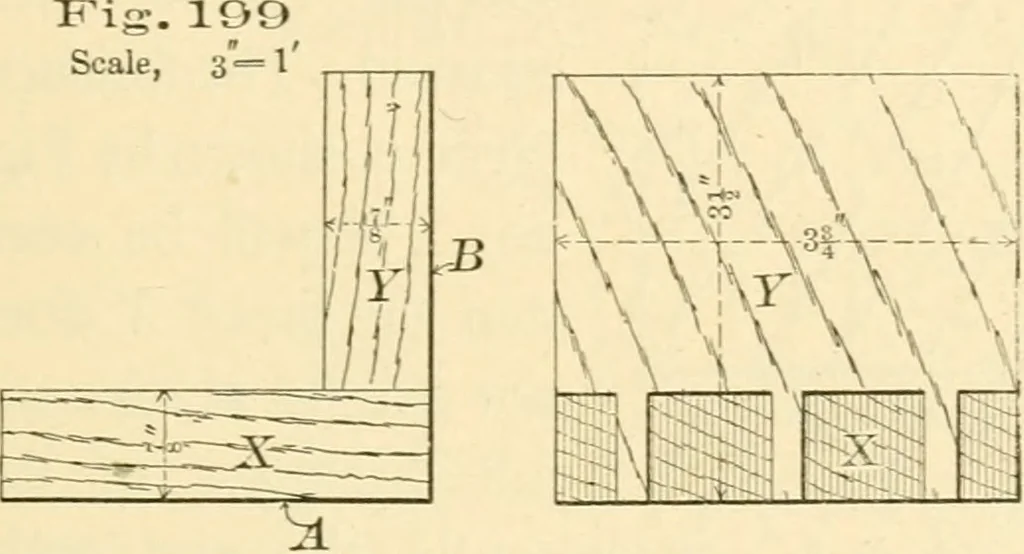

scribe on the end of Y theoblique lines as-gh, Fig. 198. Remove Y from the vise, andwith the beam of the square on the working-end, project to ablines as ef from the extremities of the oblique lines just made.The portions marked r and r1 are to be removed to form the T D END. ELEVATION (FACE C.)… … ELEVATION (B.) The joint ought to go together by light driving, and be perfectly square onthe inside betweenthe working-faces. Ifit is found to be satis-factory, take it apart,apply a light coatingof glue, and drive to-gether again. Whenthe glue is hard, thejoint may be smoothed and squared, andthe…
