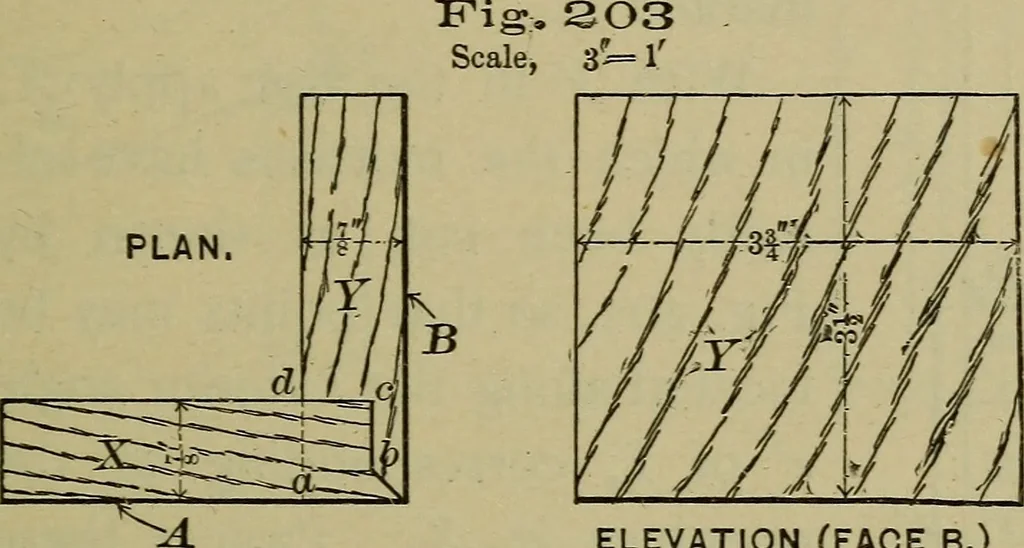

ELEVATION (FACE A.) BENCH WORK. 115 In cutting out around the pins (F), the dehcacy of the workdoes not demand the most dehcate chisel, but one as large asIs convenient should be used. Finish the joint to the dimen-sions given by Fig. 201. … I EXERCISE No. 13. —Blind Dovetail. The stock required is two pieces, each i X si X 4 edges jointed parallel and one end squared. The finished joint is shown by Fig. 203. The ELEVATION (FACE B.) dovetail iswhoUy with- in the square adcd, and, consequently, no end grain shows on any face. 175. With…
