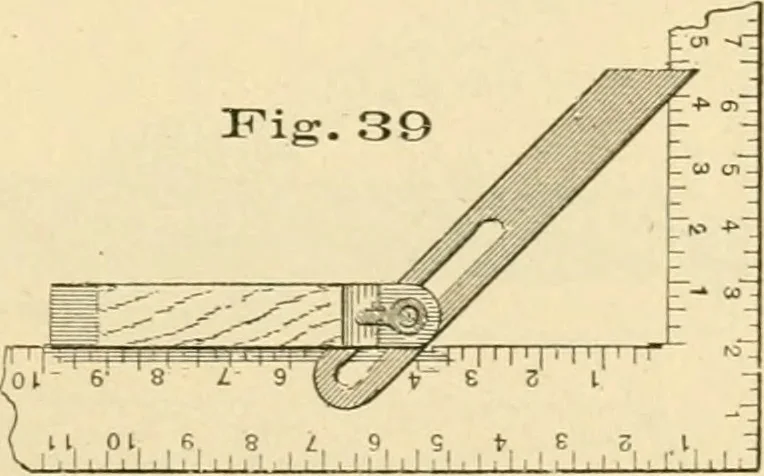

e square to be equal to a foot, andread the result in feet. If the proportions of the triangle are very large, the figuremay be drawn at full size on the shop floor, and the extent ofeach part determined by direct measurement. 29. Setting the Bevel. — Toset the bevel at a miter (an angleof 450),… … i8 BENCH WORK IN WOOD. The carpenter frequently describes an angle to which the bevelmay be set as i in 2 or 1 in 4, by which is meant thatwhile the beam is applied, as shown by Fig. 39, the blade corre-sponds to the 1 mark on one leg, and the 2 mark on the other ;or to the 1 mark on one leg, and…
