High school manual training course in woodwork, including cost of equipment and supplies and studies on trees and wood (1905)
Ritchey, Samuel Edward, 1866- · New York, American Book Company · leaf 66

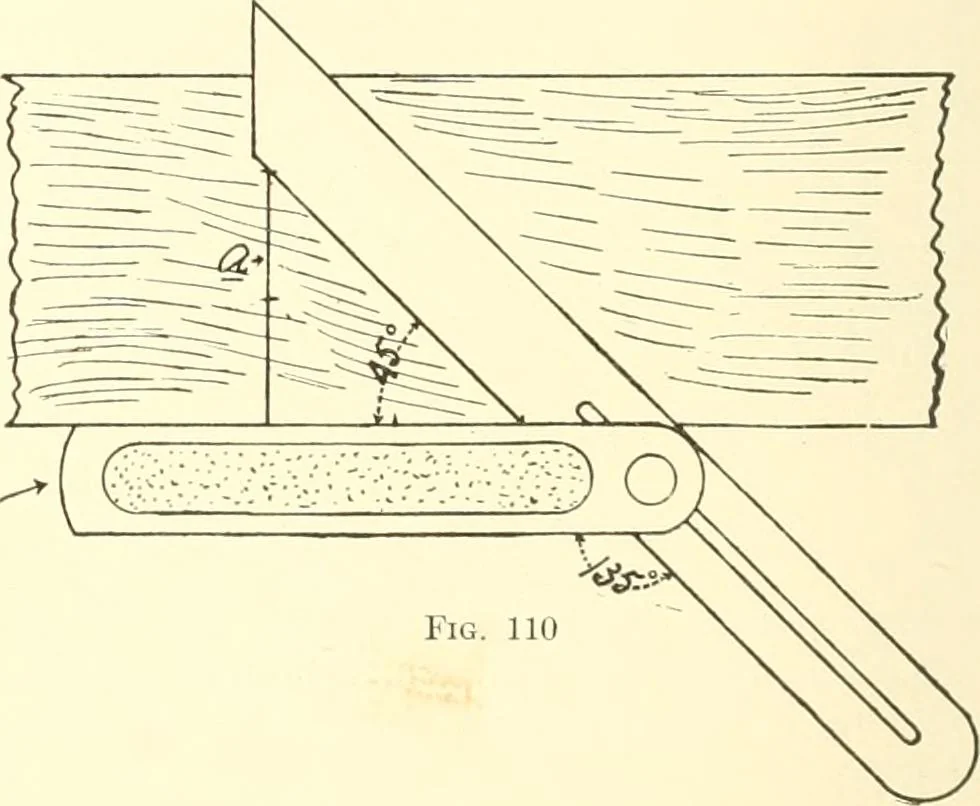

3 ins., making two adjacent sides of a square. With handleof bevel held firmly against edge of board, as shown inFig. 110, move the blade of bevel until it just touchespoints marked off on line A and edge of board, equallydistant from right angle. Screw up set screw of bevelgently, and blade will… … CARPENTRY 65 The blade, made to reach from one comer of an imagi-nary square to the opposite corner with the handle ofthe bevel parallel to one side, cuts these two corners,or right angles, measured by 90°, into halves, measuredby 45°. A simpler method is to use the large carpenterssquare as the…
Woodwork (Manual training) · Cabinetwork
