Bench work in wood; a course of study and practice designed for the use of schools and colleges (1905)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, New York, Ginn & company · leaf 37

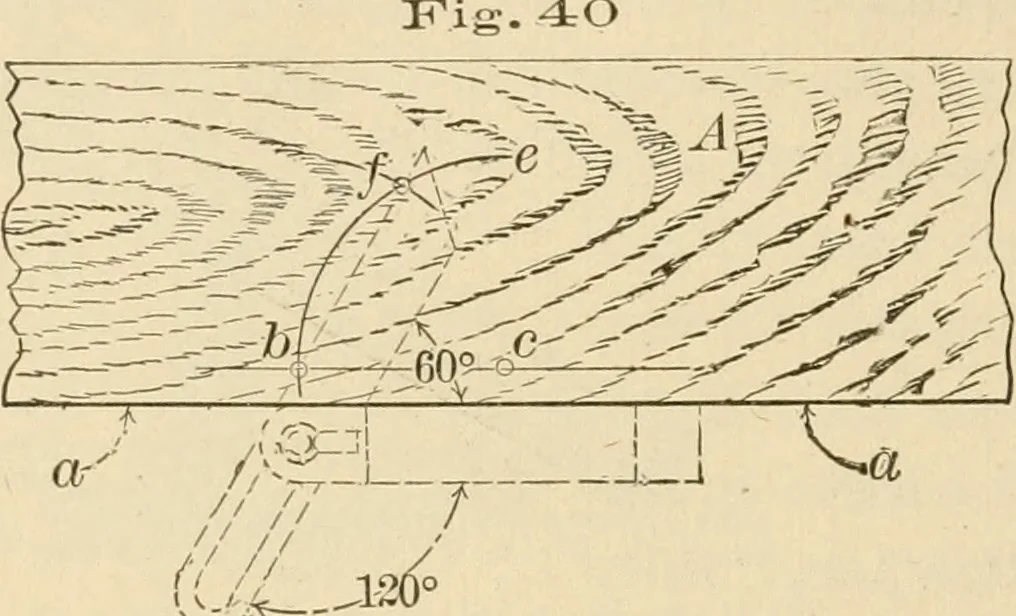

er frequently describes an angle to which the bevelmay be set as i in 2 or 1 in 4, by which is meant thatwhile the beam is applied, as shown by Fig. 39, the blade corre-sponds to the 1 mark on one leg, and the 2 mark on the other ;or to the 1 mark on one leg, and the 4 mark on the other. 30. To set… … the arc be, with sameradius, strike from b thearc/. Place the beamof the bevel against facea, move blade till it co-incides with the points b and/, and the bevel is set at an angle of60 degrees with one side of beam, and 120 degrees with the other.60 degrees is the measure of the angle between any…
Woodwork (Manual training)
