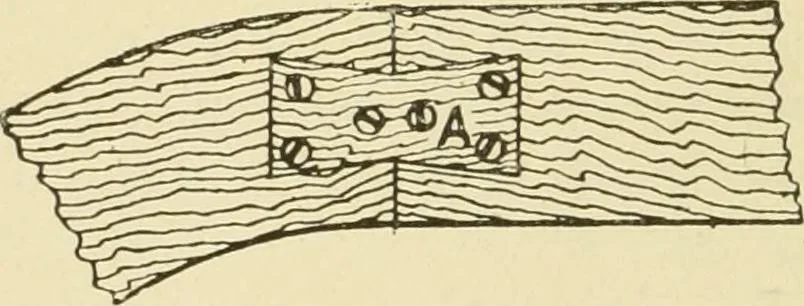

Fig. 35. The formation of Hollows and Angles. sweep is as strong as another. Fig. 35 shows how thehollows A, and angles B are put in patterns. They areworked in an angle board, and glued and nailed in, or … Fig. 36. Dovetailed Fastening. merely nailed. Fig. 36 shows how curved parts arefrequently fastened to straight pieces, that is with a CONSTRUCTIONAL JOINTS. 51 dovetailed piece A sunk in flush and screwed to bothpieces. Since pattern making is one of the most compre-hensive of trades, it is clear…
