Bench work in wood; a course of study and practice designed for the use of schools and colleges (1888)
Goss, William Freeman Myrick, 1878- · Boston : Ginn · leaf 30

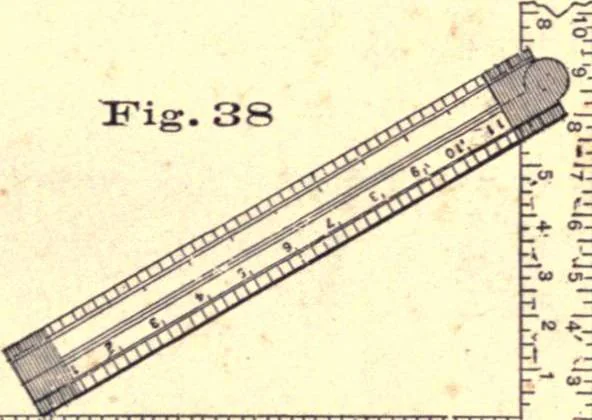

BENCH TOOLS. I? as shown. Cut to line, and the board will fit. When sharpangles, as at /, enter into the outline, greater accuracy willbe attained if the point / is located by measuring from thebase line hi. … 28. Combining Measuring Appliances. —To find the hypot-enuse of a right-angled triangle when the other two sides areknown, use the rule and framing-square, as shown by Fig. 38. Suppose in Fig. 30 the length ab = 5^, and the length ac = 9^; to find the length be, apply one end of the rule to .^^^…
Woodwork (Manual training)
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
