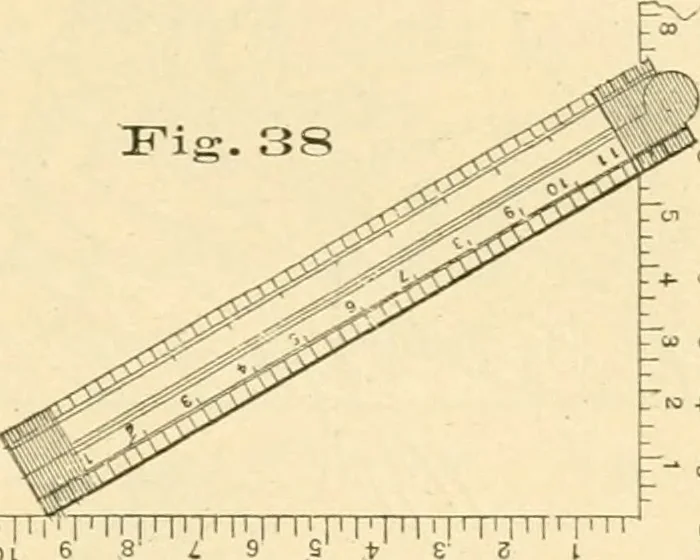

BENCH TOOLS. 17 as shown. Cut to line, and the board will fit. When sharpangles, as at /, enter into the outline, greater accuracy willbe attained if the point / is located by measuring from thebase line hi. … 28. Combining Measuring Appliances. —To find the hypot-enuse of a right-angled triangle when the other two sides areknown, use the rule and framing-square, as shown by Fig. 38.Suppose in Fig. 30 the lengthab = 5^, and the length ae— 92 > to f1*1^ the length be,apply one end of the rule tothe 9^-…
