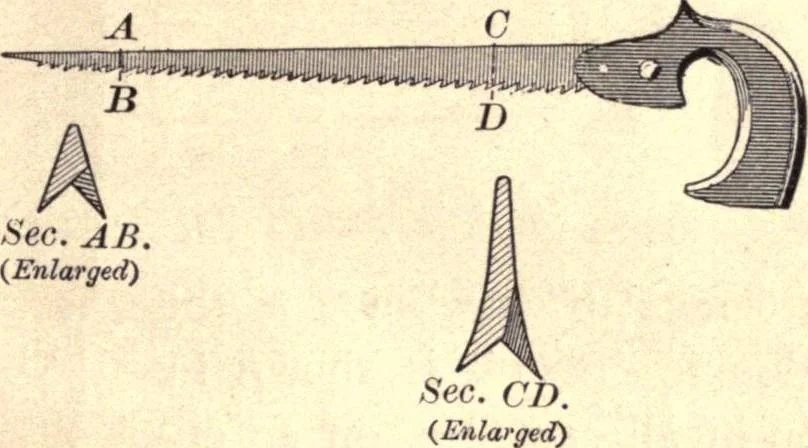

by Fig. 69, is intended forsawing in curved lines. Its blade is extremely thick, and the teeth are given an enor-mous amount of set. Seesections AB and CD,Fig. 69. If the curve inwhich it is to be used isvery small, only a shortportion of the bladeslength next the point canbe used. With a curveof… … Sec. AR. (.Enlarged) Fig. 70 ,£ BENCH WORK IN WOOD. They are thus adapted for use in any direction relative to thegrain of the wood. APPLIANCES FOR SAW FILING AND SETTING. 58. A Triangular Saw File l is of the form shown byFig. 71. A slim saw file is represented by Fig. 72; it is
