Bench work in wood; a course of study and practice designed for the use of schools and colleges (1888)
Goss, William Freeman Myrick, 1878- · Boston : Ginn · leaf 60

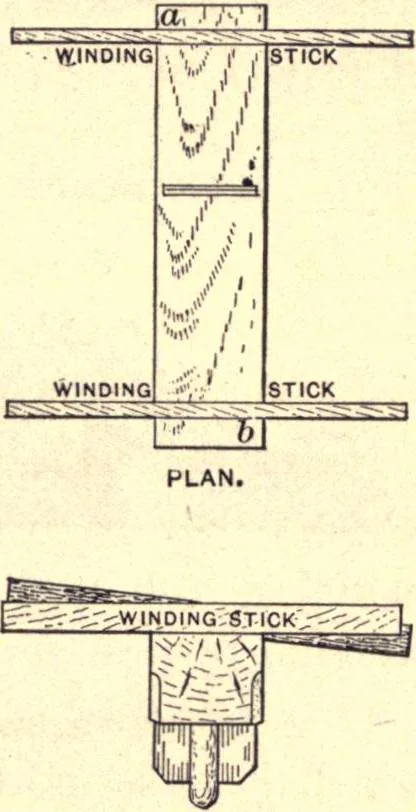

beso distorted by a hard-driven wedge as to make it incapable ofdoing good work. The iron will be held in place even whenthe wedge is so loose that it may be drawn out with the fingers. Notwithstanding the fact that wooden plane-stocks are madefrom material little affected by atmospheric… … 75. To Joint a Plane, fasten it in a vise with the face upand the front end to the right. The iron should be in place, thecutting edge well back within the mouth,and the wedge driven as for work. It is nownecessary to determine whether the planeto be jointed is twisted or not (97). Ap-ply two…
Woodwork (Manual training)
