Bench work in wood: a course of study and practice designed for the use of schools and colleges (1902)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, Ginn & company · leaf 127

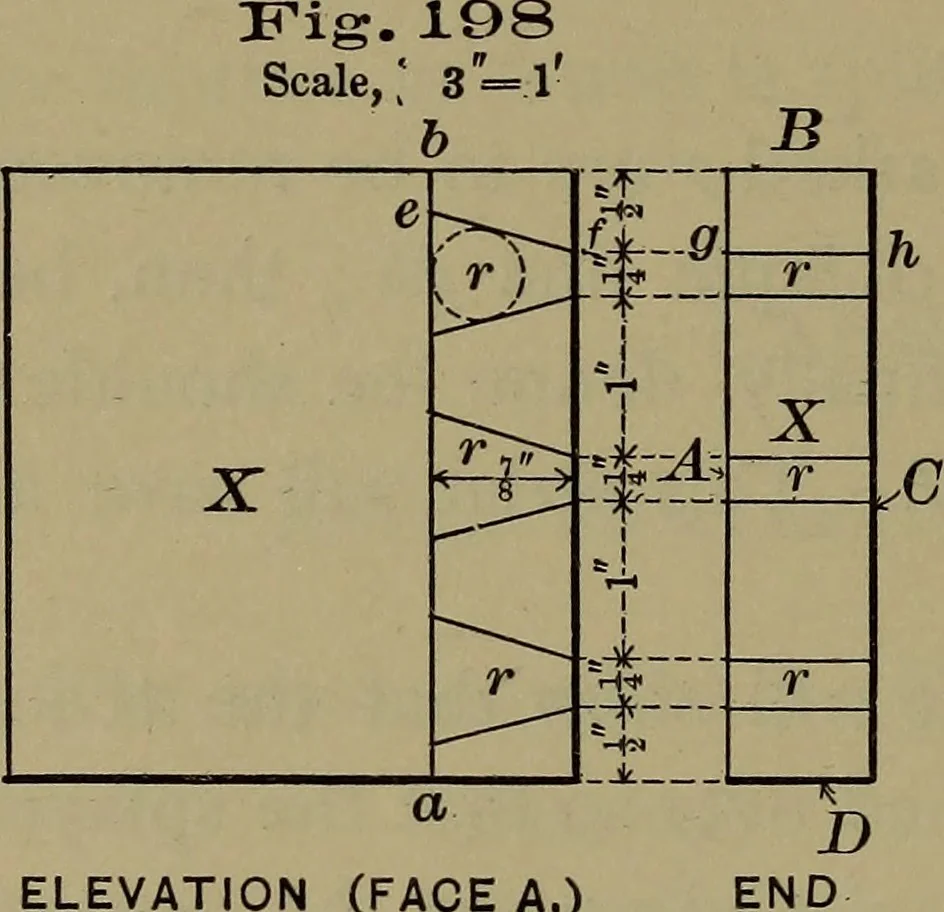

each |- X 3f X 4,edges jointed paraHel, and one end squared. (The materialmay be worked up as one piece |- x 3f X 8, which, afterbeing planed to width, may be cut in two with the back-saw,thus giving the squared ends required.) The working-facesused in preparing the material may also be used in… … ELEVATION (FACE A.) END. U- 171. Lay off on all four faces of each piece, ^ from the squared end, the line a^. Fig. 198.Fasten X in the vise, and on itssquared end lay off lines as gk,Fig. 198. Remove the piece fromthe vise, and with the bevel set^^ I to 4 (29), project on thefaces A and C oblique…
Woodwork (Manual training)
