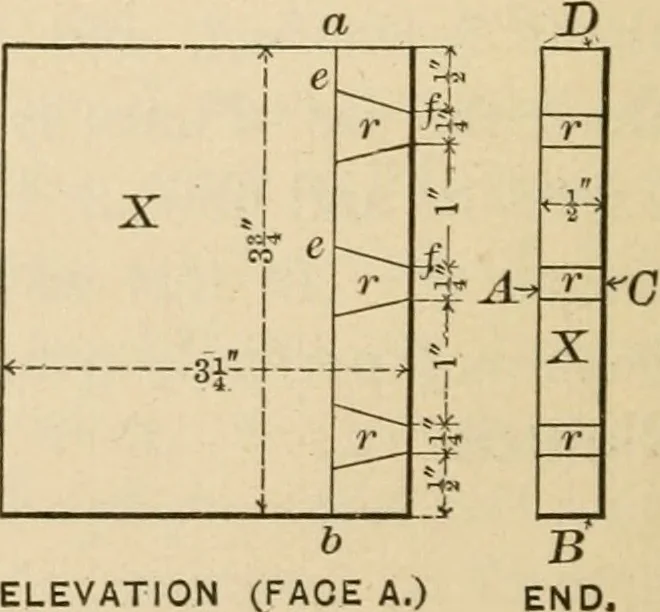

■*> Fig. 202, scribe the line ab, i(the thickness of X) from theworking-end, and continue itacross the working-edges. Set agauge at f, and from the work-ing-face A gauge the line cd onthe working-end, and extend it onthe edges until it meets the ex-tended line ab, as shown by faceD, Fig. 202.… … ELEVATION (FACE A.) BENCH WORK. 5 In cutting out around the pins (F), the delicacy of the workdoes not demand the most delicate chisel, but one as large asis convenient should be used. Finish the joint to the dimen-sions given by Fig. 201. EXERCISE No. 13. —Blind Dovetail. The stock requiredis two…
