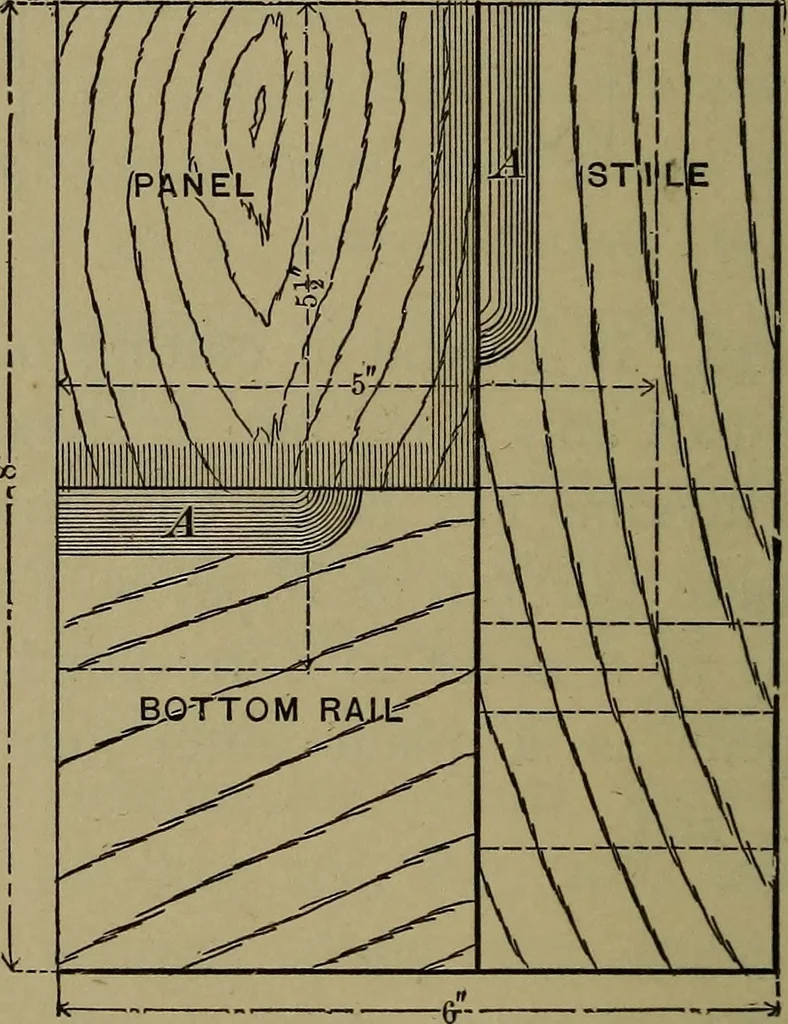

ELEVAJIOW-. sions as follows : for the stile,If X 21 X 9; for the rail,li X 4 X 61-; and for thepanel ^ X 5 X si. Thefinished work is shown byFig. 212. … ELEV.ATION. 178. The mortise-and-tenon joint between the stile and rail,both in the size and position of its parts, is shown by Fig. 213.The width of the mortise and the tenon should be equal to thewidth of the f chisel.^ It will be noticed that the lines areso placed as to make the stile extend…
