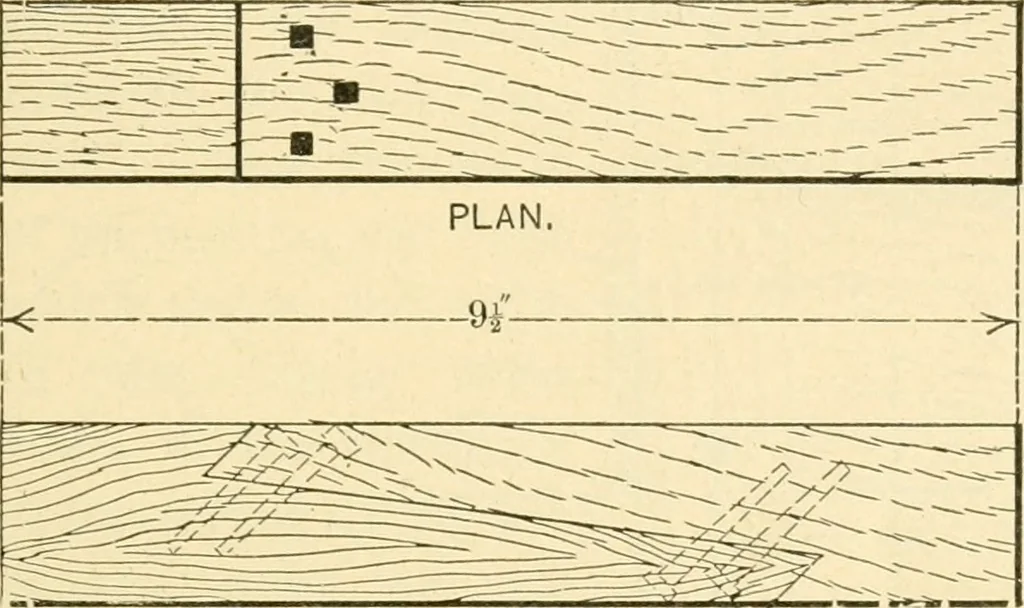

BENCH WORK. I03 EXERCISE No. 8. —Splayed Splice. The stock required is ifx if x 16, from Exercise No. 4 ;the necessary lines are shown by Fig. 186. The finished pieceis represented by Fig. 187. Fig.187Scale, 3=1 II … PS Si END. ELEVATION. 162. Let the faces A and B be the working-faces. Layoff on face A line a, and from a, the lines b, c, d, <?,/, g, h, andi, and project these lines on all four faces of the work. Set thebevel at an angle of 45 degrees; with its beam on A, as indi-cated by the dotted outline,…
