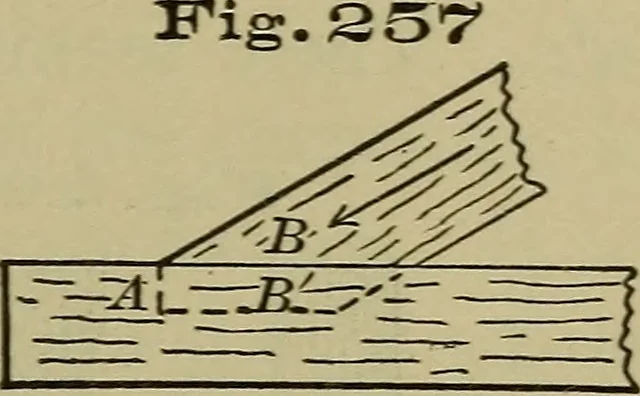

Fig.S56 H^EE^ … Miscellaneous Joints. 215. Oblique Mortises and Tenons may be used to jointwo timbers meeting each other at an obhque angle. Fig. 257shows a common form in which the abutting surface, repre-sented by the dotted line A^ is perpendicular to the cheeks of I40 BENCH WORK IN WOOD. the mortise, and the…
