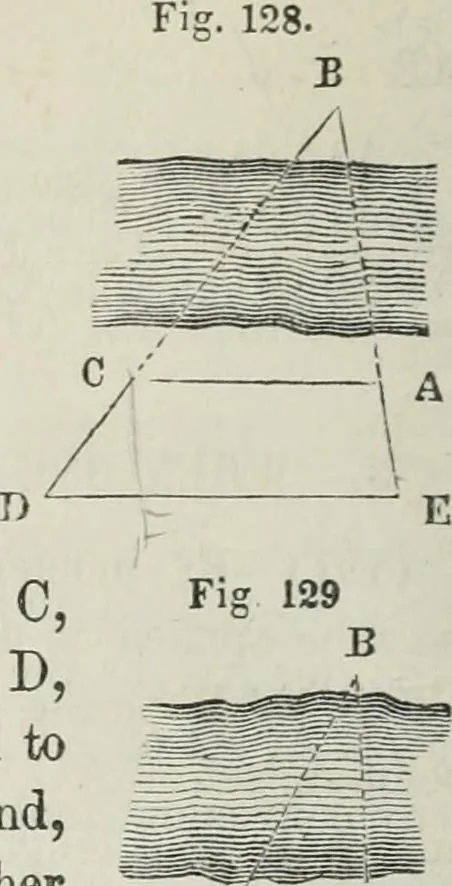

BD-/ 116 CHAIN SURVEIBG. [part n V (194) By parallels. From A measureAC, in any convenient direction. From apoint D, in the line of BC, measure a lineparallel to CA, to a point E, in the line ofAB. Measure also AE. AC X AE Then is AB DE —AC … (195) By a parallelo^^ram. Set a stake, C,in the line of A and B, and set another stake, D,wherever convenient. With a distance equal toCD, describe from A, an arc on the ground; and,with a distance equal to AC, describe anotherarc from D, intersecting the first arc in E. Or, ^ /ftake AC and CD, so…
