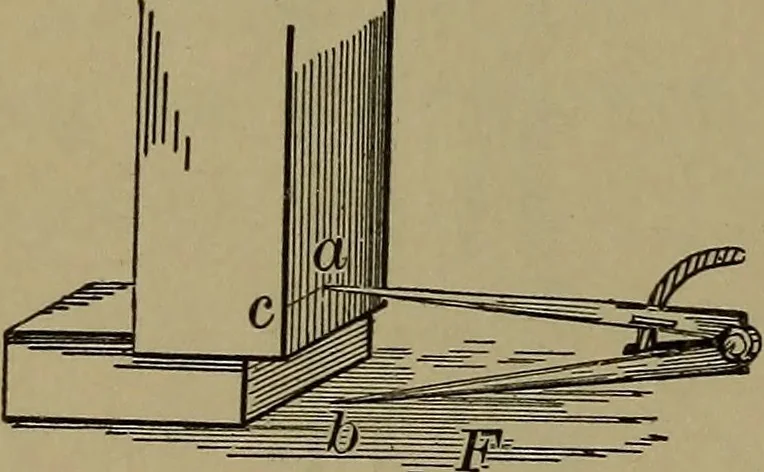

i6 BENCH WORK IN WOOD. delicate by use of the thumb-nut C, which, acting in opposi-tion to the spring Z>, shortens the arc B or allows the spring tclengthen it, as may be required. Fig. 36 … 27. Scribing with Dividers: Example i.—The four legsof a table are of unequal length, and prevent it from standingeven. Scribe the legs to length. First, by means of blocks or wedges under the shorter legs,make the top of the table to stand parallel to some plane sur-face, as a bench top, or even…
