Exercises in wood-working, with a short treatise on wood; (1890)
Sickels, Ivin. [from old catalog] · New York, D. Appeton and company · leaf 69

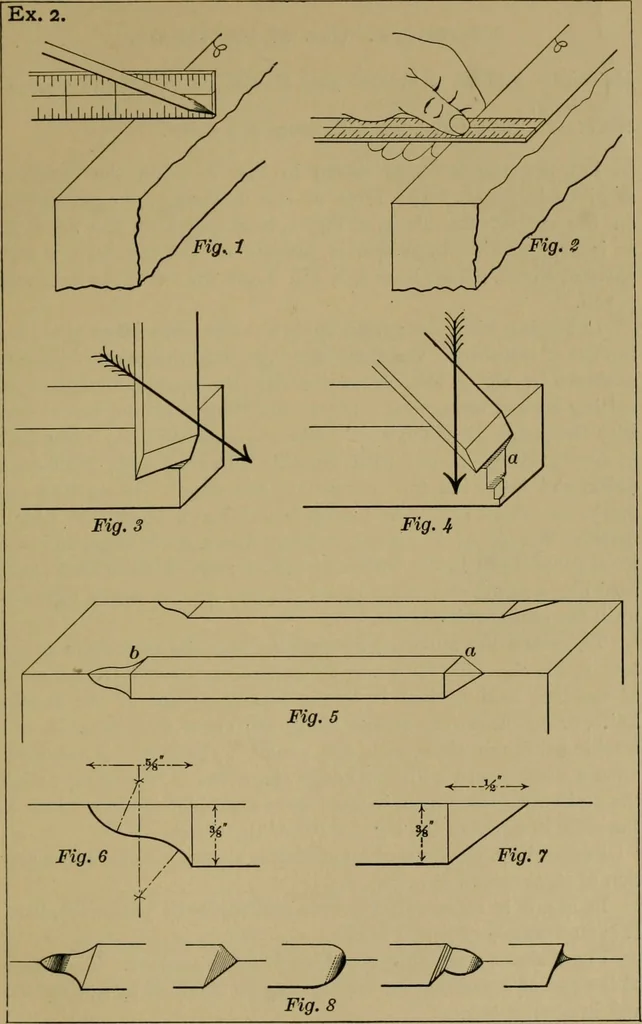

nes parallel with the face-•edge, with the rule and pencil, and the cross marks with the try-square. Lay out the ends of the chamfer according to the meas-ures given in Figs. 6 and 7; the first is an ogee, and the second abevel. In cutting the chamfer, use the chisel in the position shown inFig. 1,… … 68 ORDINARY TOOLS. Exercise 3.—Use of the Gouge. Material.—A block of dressed pine, 2 wide, 1\ thick, and about 6 long.Work.—To shape a molding with gouge and chisel. Lay out the block as shown in Fig. 1, using the measuresas given in Fig. 2. The form of the molding, an ogee, as seenon the end of…
Woodwork (Manual training) · Wood
