hp :: terminal :: 262x :: 02627-90002 2627A Color Graphics Terminal Reference Manual Nov1982 (1919)
leaf 78

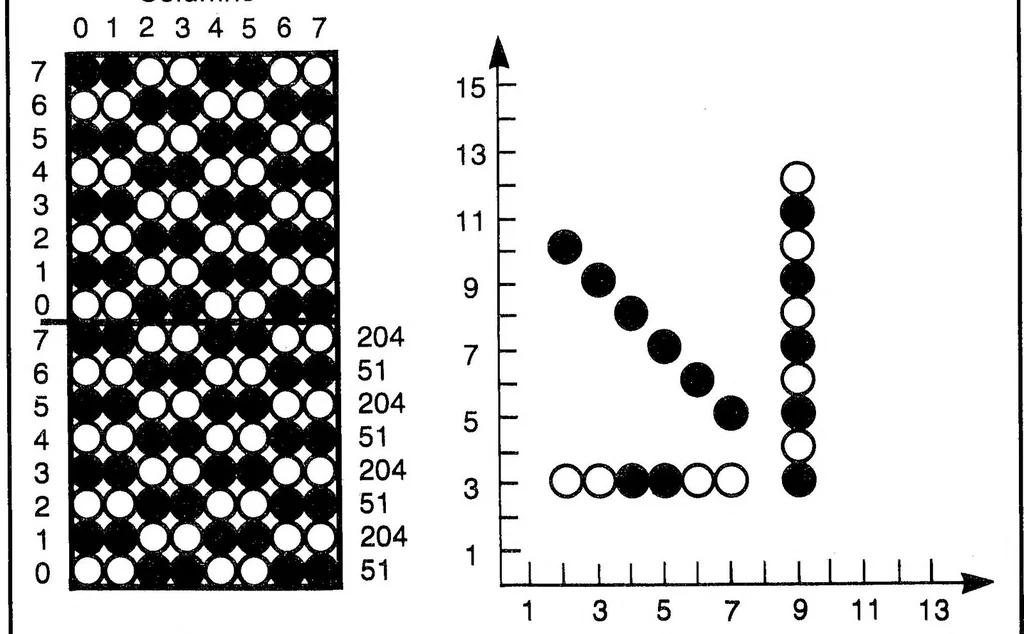

Graphics Display User Defined Dither Patterns The current dither pattern may be user defined using the following sequence: ^ * rn <parm1 > T <parrn2> T <parm3> v Columns 0 1 2 3 4 5 6 7 … 1 3 5 7 9 11 13 Step 3. Define dither pattern Area Fill Pattern Display (A) (B) h* ml , .5, OV NOTE The steps in this example can be com- bined into one escape sequence: Figure 5-11. Using Area Fill Patterns As Line Types ^♦mOglw 1 ? .5,0V Selecting Dither Patterns The terminal has 11 predefined…
