Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 224

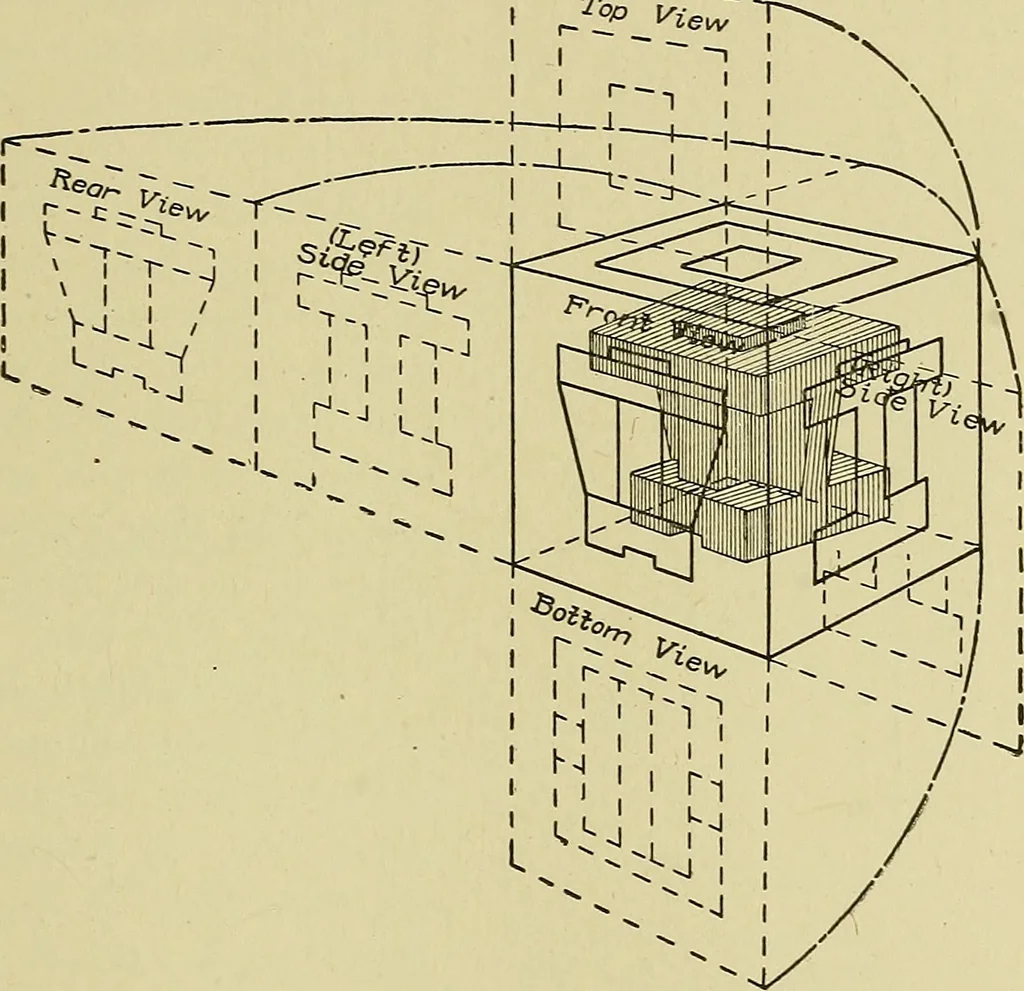

e top, and drawing a curved line through these dots. The two 144 MECHANICAL DRAWING 79 end views are placed as shown—the right-hand view at the rightof the front view, and the left-hand view at the left. This givesthe proper arrangement of the views as a draftsman would workthem out on paper. In… … Fig. 102. Folding Out of the Projection Planes Into the Plane of the Surface of the Dra-n-ing Paper Courtesy of Pennsylvania Railroad Company, Altoona, Pennsylvania bottom, right side, left side, and rear. In Fig. 102 is representedthe method of folding out the projection planes after the faces…
Mechanical drawing · Blueprinting
