Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 238

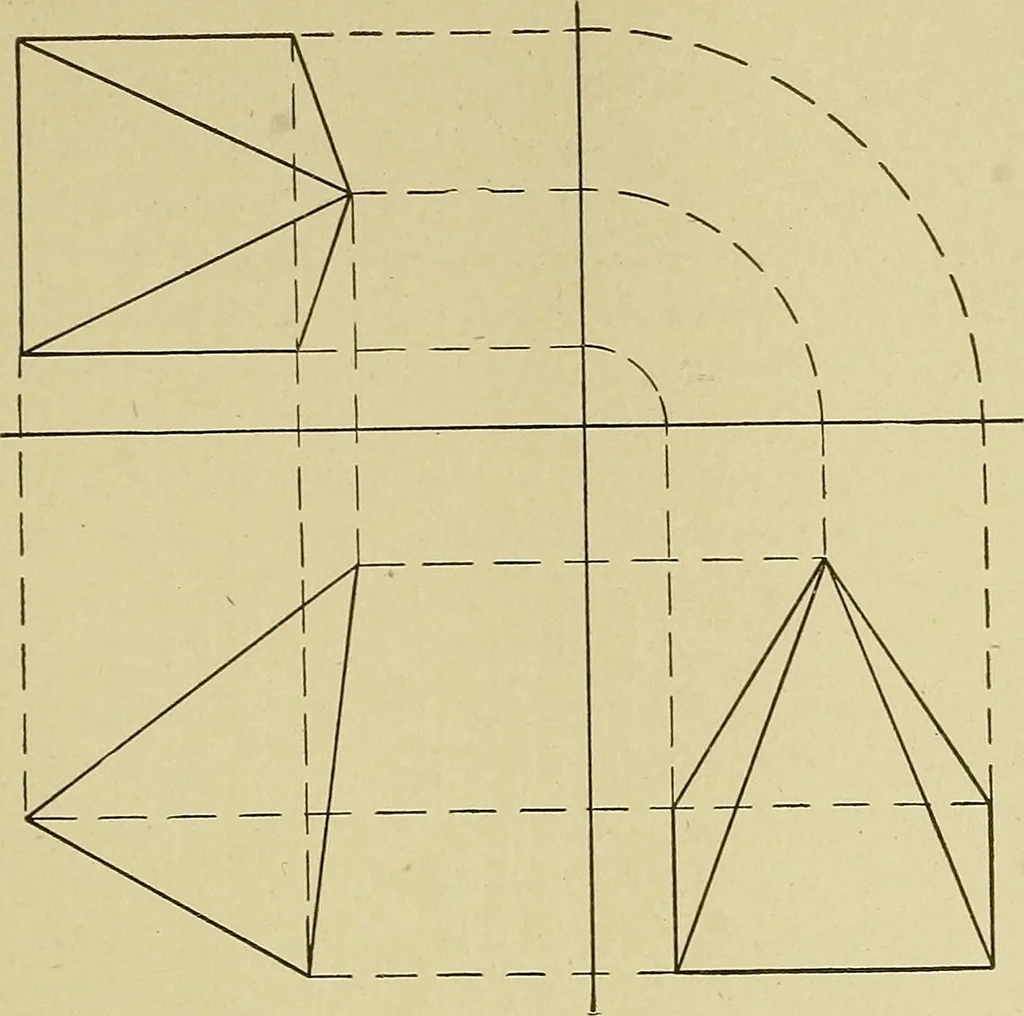

, by projecting across from the front view, and revolv-ing down from the plane at right angles to the horizontal and verticalplanes the points projected across from the top view. Cylinder in Inclined Position to Horizontal Plane. As shownin Fig. 128, first draw the plan, a circle, at A. Then draw… … Fig. 127. Plan, Front, and Side Views after Revolving Pyramid in Fig. 125, through 30 Degrees with Horizontal Plane
