Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 98

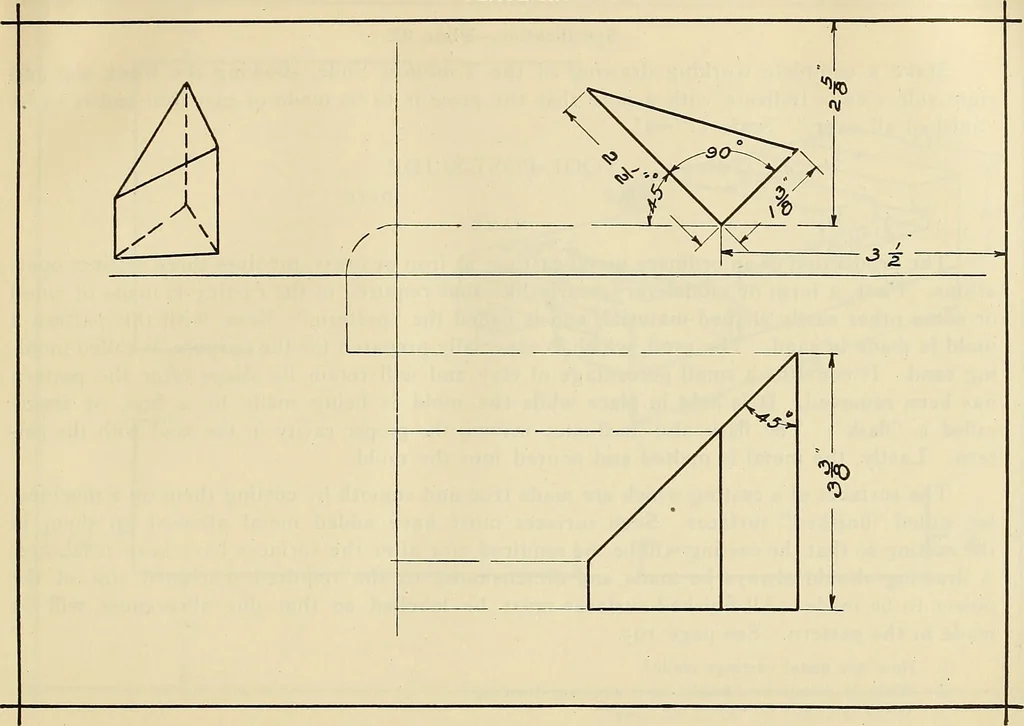

94 MECHAXICAL URAWIXG PROBLEMS Specification—Plate 26A. Draw three views of the Truncated Prism when placed as indicated and truncated asshown. Show all projection lines. Scale I2=i. Title:— TRUXXATED PRISM SCALE DATE rAME PLATE 26A … 96 MECHANICAL DRAWING PROBLEMS Specification—Plate 27. • Make a complete working drawing of tlie Tool-post Slide, showing the front, top andright-side view. Indicate with a note that the piece is to be made of cast iron and is to hefinished all over. Scale I2=i. Title:— TOOL-POST SLIDE SCALE DATE…
Mechanical drawing
