Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)

Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 36

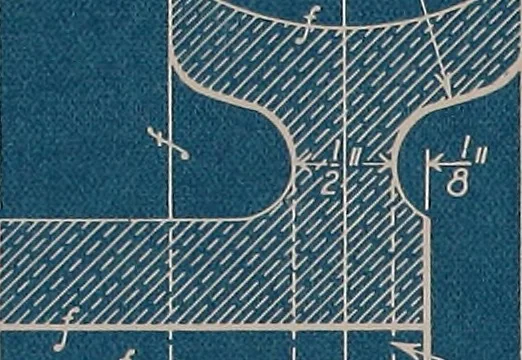

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 36 — e been noted that inPlate I three views were needed to show the workman all heneeded, while in Plate II two views were sufficient. In Plate IIIa single view shows all that is needed to build this piece of workcompletely. The data on the upper edge of the blueprint statesthat the piece represented… … -§Xil/f£YmY
