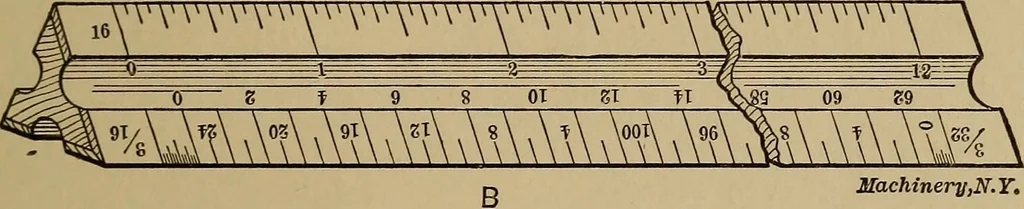

Machinery,N. Y. Fig. 23. Scales used by Draftsmen pen will draw perfect circles from less than -^ inch diameterto 3! inches diameter. There is one 3^-inch pencil compasswith fixed pencil and needle points, and a 5^-inch pen com-pass with fixed pen and needle points, and hairspring adjust-ment. The…
