Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 274

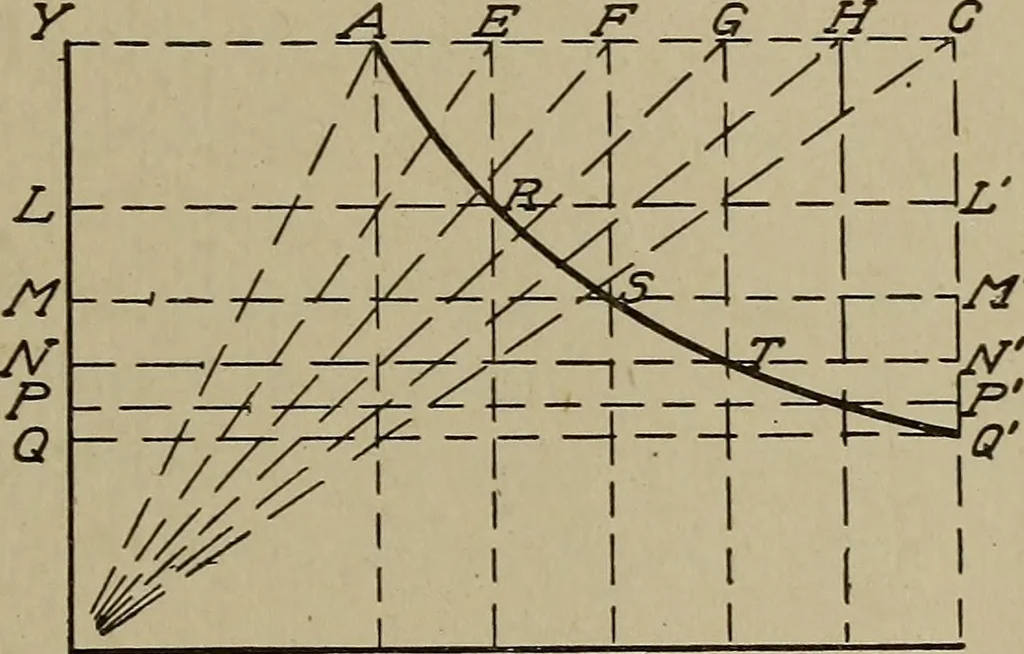

ion ofLLf and EE, the third the intersection S, and so on. In this curve the products of the coordinates of all points areequal. Thus LRxPiE = MSxSF= NTx TG. ODONTOIDAL CURVES Cycloidal Curves. Cycloid. The cycloid is a curve generatedby a point on the circumference of a circle which rolls on a… … MECHANICAL DRAWING _ hich the circle rolls, the director. In order that thecurve described by the point may be a true cycloid the circle mustroll witho -lipping. In case the generating circle rolls upon the insidei r circle, the curve thus generated is a hypocycloid, JJ05P*
