Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)

Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 320

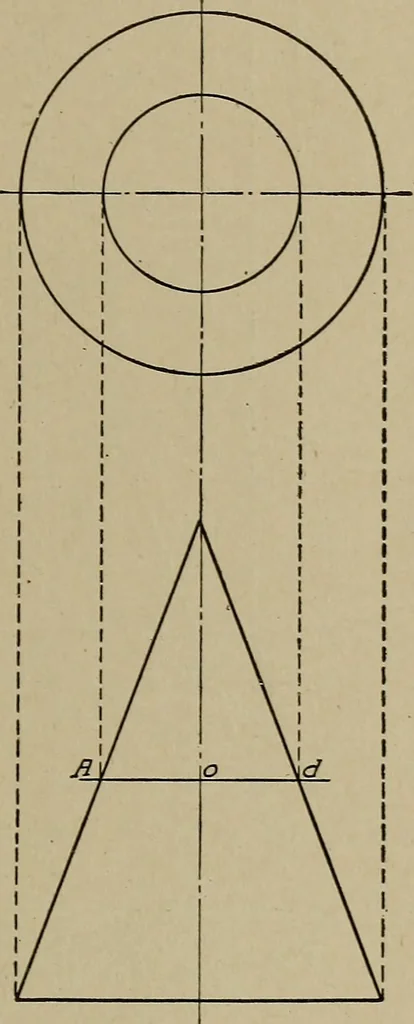

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 320 — Fig. 133. Intersection of Plane and Prism Fig. 134. Intersection ofPlane and Cone elevation, found in plan at lh. Points 3 and 2 are obtainedin the same way. The intersection is shown in plan as the square1-2-3-4, which is also its true size as it is parallel to the horizontalplane. In a similar…
