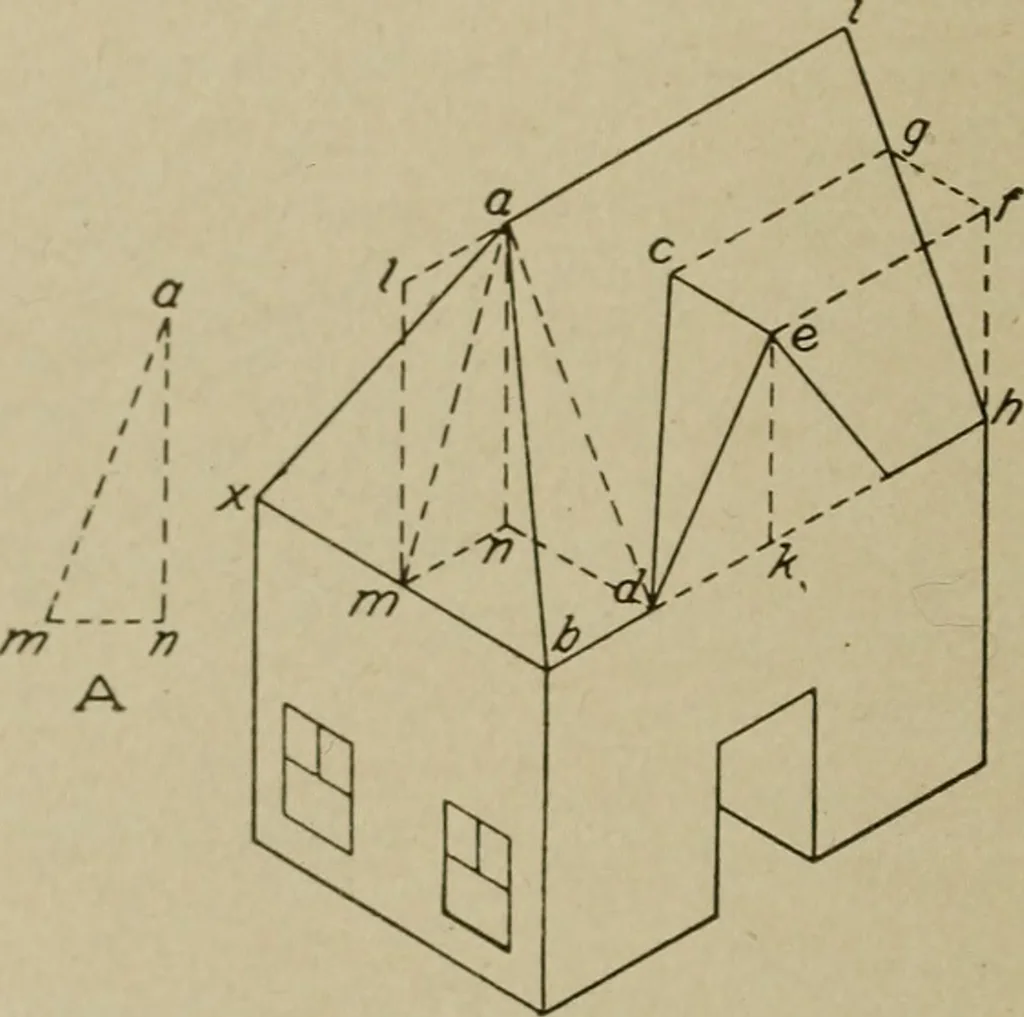

of the ridge, will be back from the end wall a distanceequal to the base of the triangle at A. Hence, lay off from I thisdistance, giving point a, and join a with b and x. The height ke of the ridge of the dormer roof is known, and itmust be found where this ridge will meet the main roof. The… … B *d Fig. 160. Isometric Outline of a House the end wall of the house, hence in the plane of ih. If now a 30-degree line be drawn from/ parallel to x b, it will meet the roof ofthe house at g. The dormer ridge smdfg are in the same horizontalplane, hence will meet the roof at the same distance…
