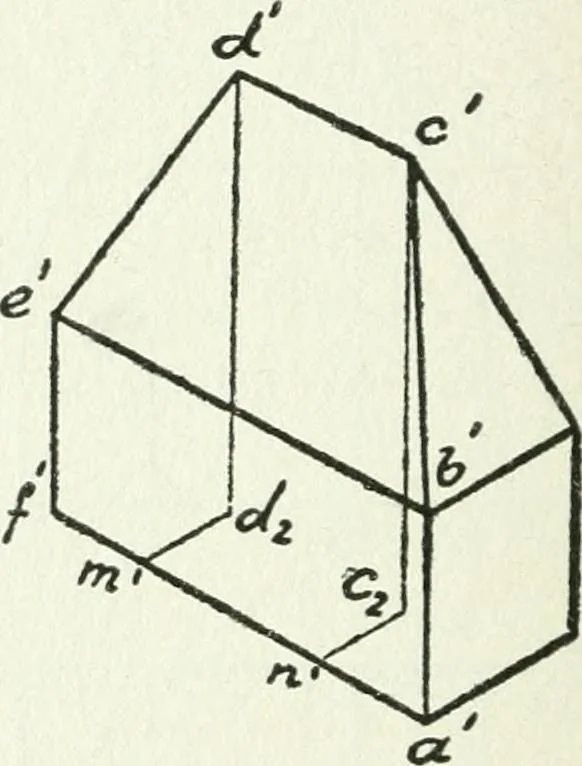

Fig. 87. Drawing a Wedgc-Shaped Block in Isometric. 120. To draw a wedge-shaped block in iso-metric, refer to Fig. 87. The base is drawn inisometric as before, and the vertical edges maybe drawn immediately, obtaining points b\ e\etc. The point c^ is located in isometric bymeans of three…
