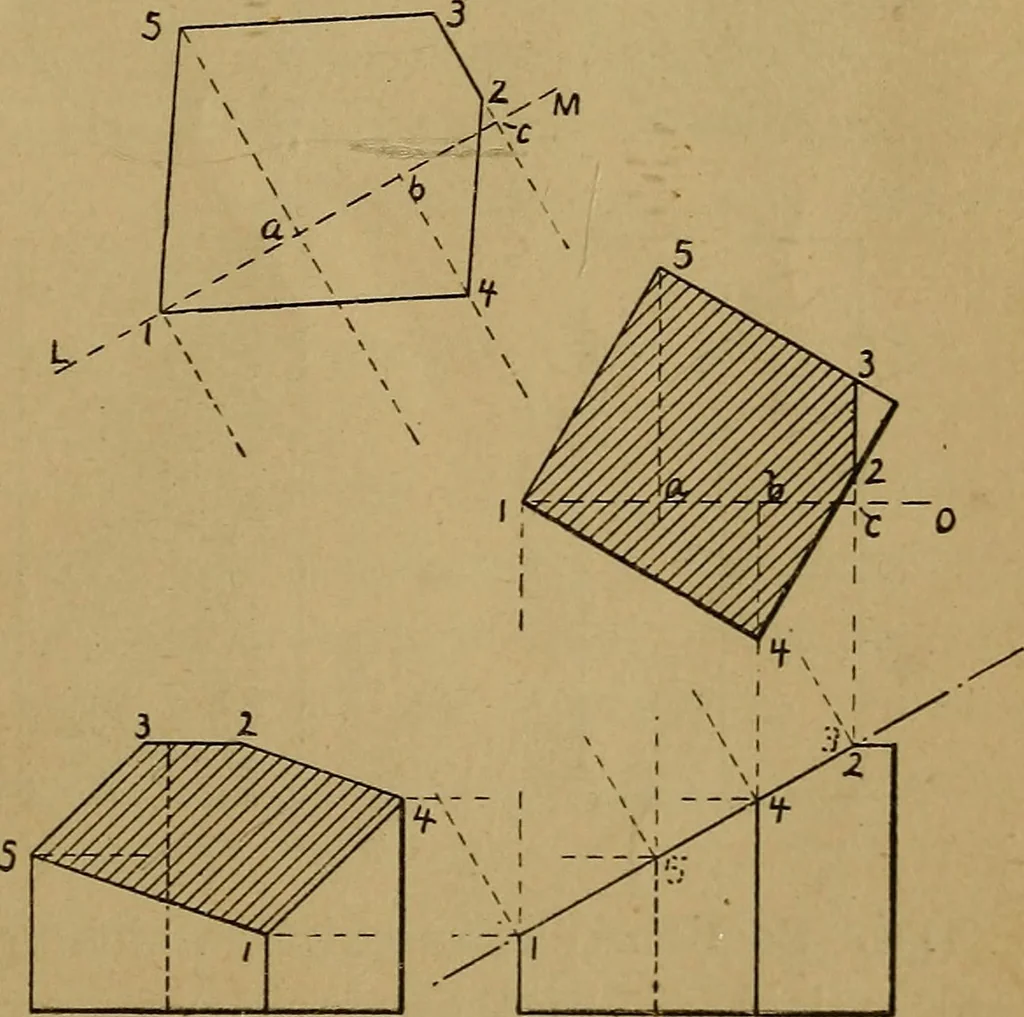

ll be obtained. A simple way to obtain the true shape is to draw LM parallel toEF^ and from points z, 2, and 4 in EF^ draw perpendiculars to EF;these perpendiculars in-tersecting LM give thelengths ; the widths areobtained by setting off eachside of LM the distancesof the points in the topview from… … 92 MECHANICAL BRA IVING. front plane. When the sides of the cube are not at 45° to the frontplane the section will not be symmetrical, the front view will not givethe real length of the section, and line i-o will pass through only oneof the corners of the top view. The real shape of the section in…
