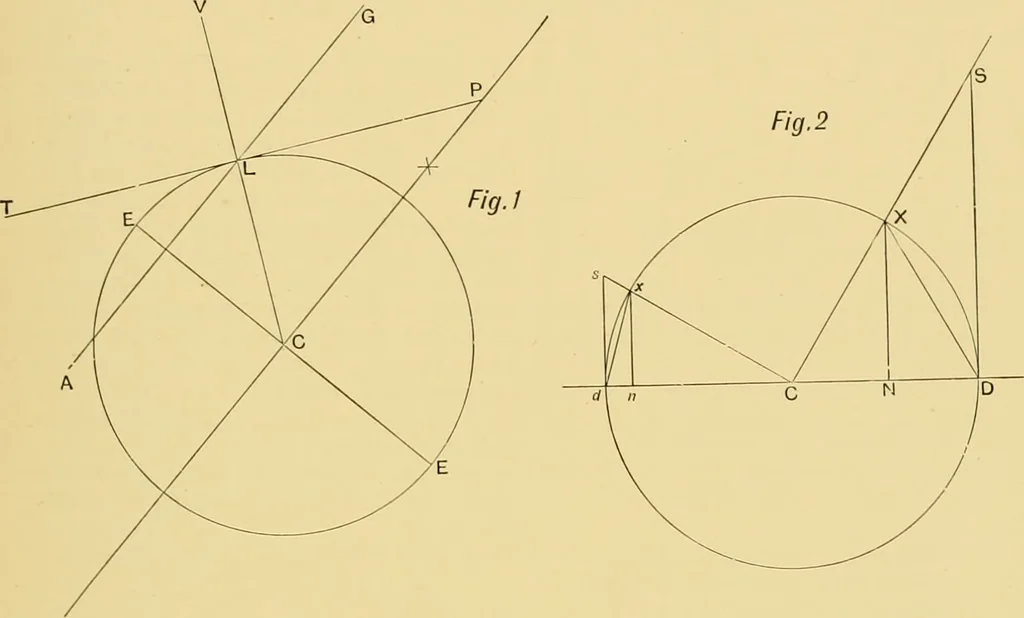

an angle is to use a scaleof chords, which is usually marked on the ivory ruler of a box of compasses. Itis preferable, however, in each case, to make for yourself a scale of chords on alarge scale at the side of the drawing paper and, inasmuch as only two or threeangles for each dial are required,… … will be seen by referring to Fig. 2, which will also make clear other terms usedin treatises on sun-dials. From the centre, C, describe a circle with the radius of 60 on the scale ofchords. From the end of the diameter at D, measure off with the same radius, D X,and draw C X S. Draw N X and D S…
