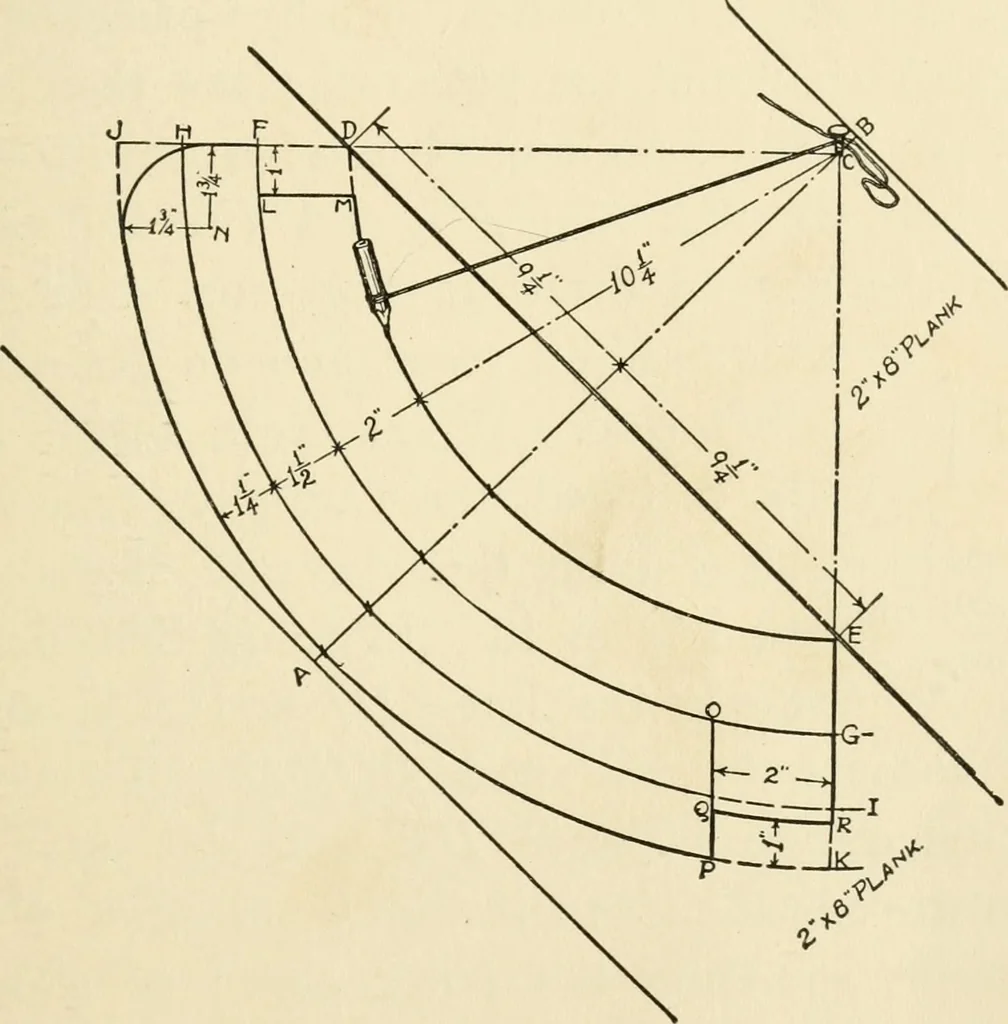

nd the end of thecompass cord around it until the correct length of radiusis obtained (see drawing). Describe the arc DE witha radius equal to CD, or ten and one-quarter inches. Fig. 200. — Bow and Stern Pieces. HOW TO BUILD A CANVAS CANOE 205 Then with a ruler lay off along the line AB the… … Fig. 201, draw the lines CD and CE, extending them so as tocut off the arcs, as in the drawing. At the upper endof the pattern draw the line LM one inch from andparallel to FD. With a radius of an inch and three-quarters and the centre N describe an arc as shown 2o6 OUTDOOR PASTIMES in the drawing.…
