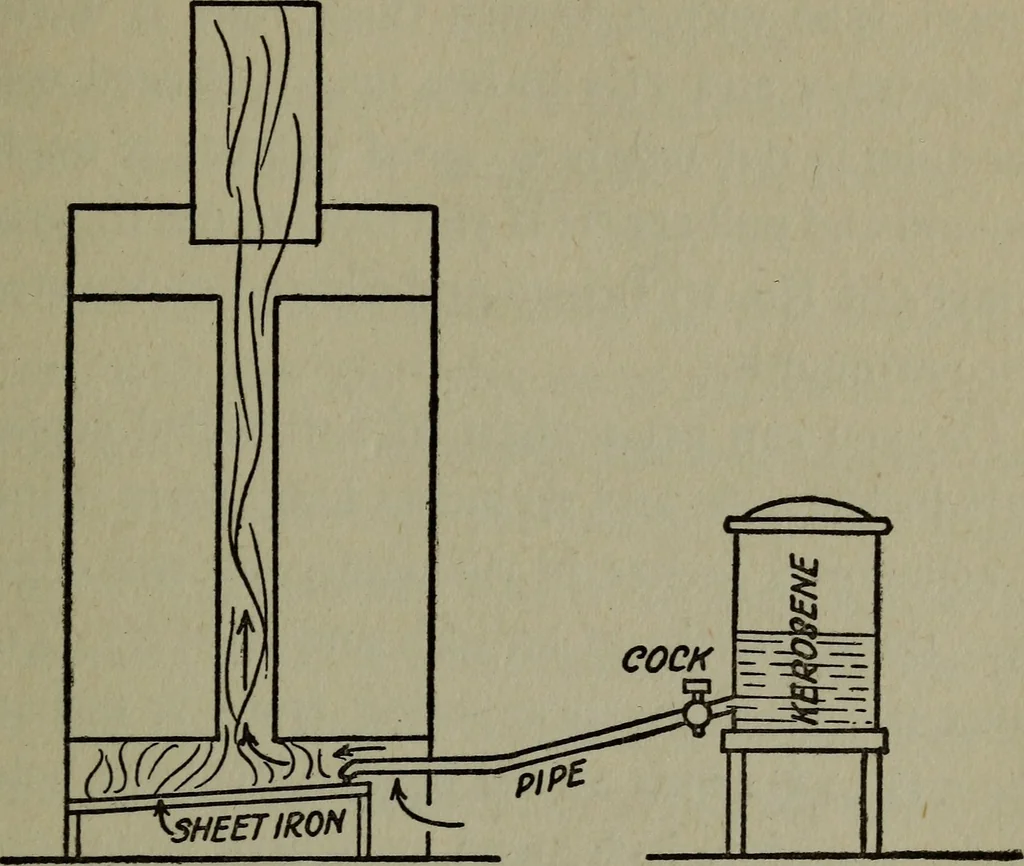

Fig. 42 B. A Bunsen Flame Stove edges Vs inch all the way round to form a pan;rivet three legs to it so that it can be set underthe boiler with the plate at about the height of 1 L. E. Knott Apparatus Co., Boston, Mass. Making Small Boilers 101 the grate and tilting toward the back a little asshown… … Fig. 42 C. A Kerosene Burner to it and in turn solder to this a /4-inch pipe, 12inches long; cut a /4-inch hole through the top ofthe door of the fire-box, pass the pipe throughthe hole and over the pan, all of which is shownat C. Turn on the oil so that it falls drop by dropon the pan and let it…
