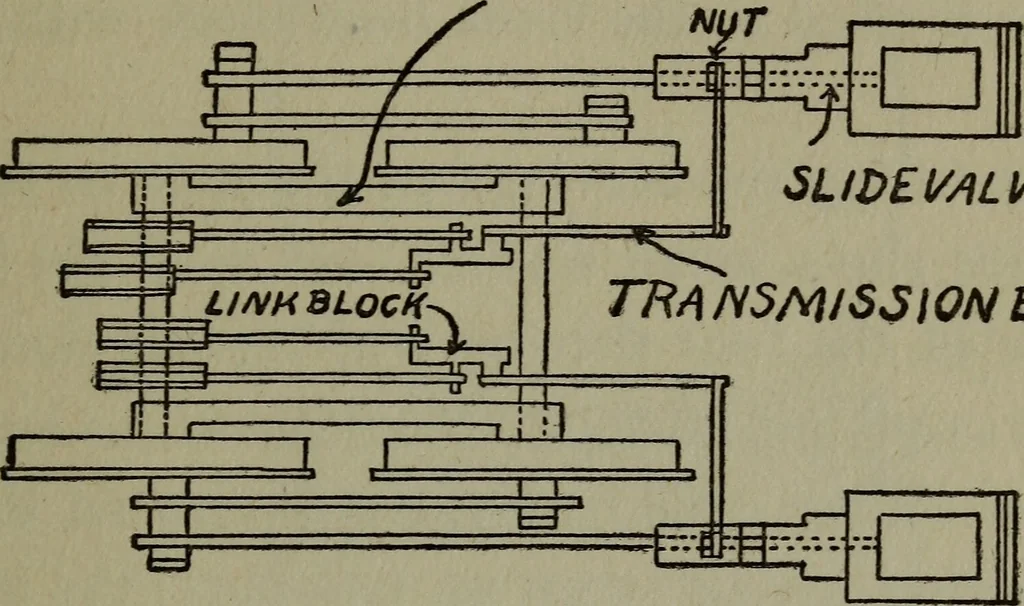

on the crank pinson both the front and back wheels as shown inFig. 62. Cut off two pieces of soft steel rod Vs inch indiameter and % inch long and thread the ends.Screw one of these pins into each of the frontwheels; cut off two more pieces of the %-inch A Model Atlantic Type Locomotive 165 rod and… … TRANSMISSION BAR Fig. 62. Coupling and Link Gear The Side, or Coupling Rods.—You can eithermake patterns of and have the side rods cast,thereby making them look like those on a regu-lar locomotive, or you can make them out of astrip of brass Vs inch thick, %e inch wide andhave each of them 3%…
