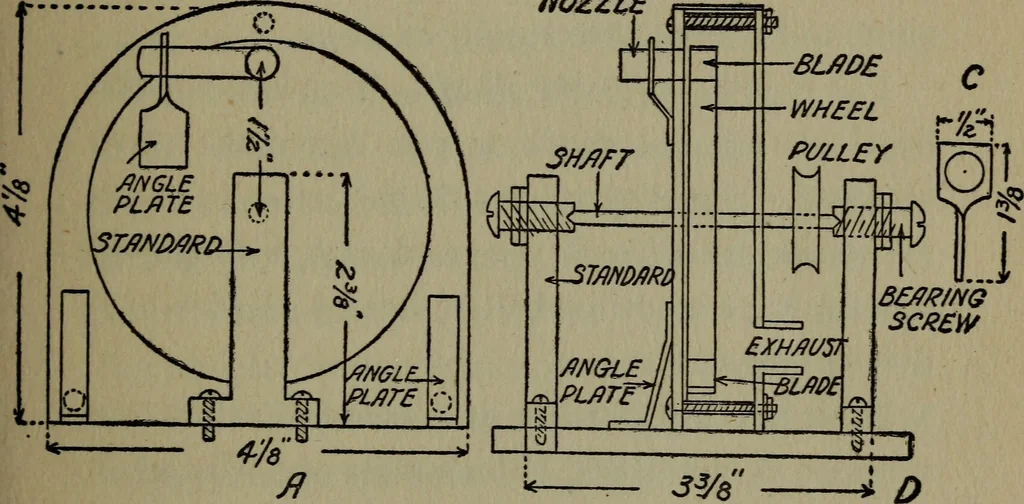

x ANGLEPLATE N%\ zzie nozzle … Fig. 21. Construction of the Turbine Wheel-Case hole in the plate which carries the nozzle; slipone of the tubes over each screw to keep theplates apart and insert the shaft of the wheelin the center hole of the nozzle plate. Next set 40 The Boys Book of Engine-Building the case plate with the…
