Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 117

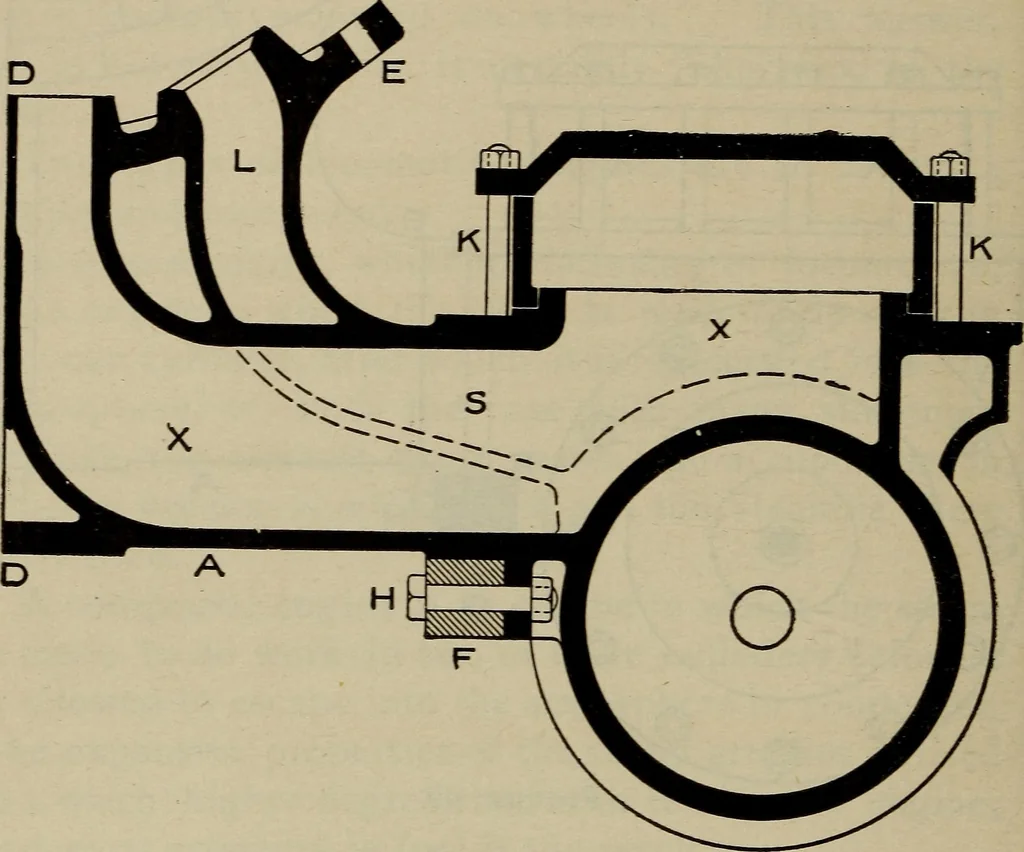

wever, is to cast one-half of thebed casting with each cylinder and then bolt the twohalves together at the line D D, this being the centerline of the engine. u6 LOCOMOTIVE ENGINEERING The bed castings are secured to the smoke-box bybolts through the flanges E E, and the cylinders arebolted to the… … Figure 50 two passages in the bed casting leading to the cyhn*der. The one L S is the live steam passage, and tothis is connected the steam pipe 84, Fig. 31, ChapterIII, and the other one x x is the exhaust passage lead-ing from the cylinder to the smoke-box where theexhaust nozzle is attached.…
Locomotives
